(35.360.AM[04]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=4.0M)

Запчасти Case CX350D LC (35.360.AM[04]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=4.0M) (35) - HYDRAULIC SYSTEMS

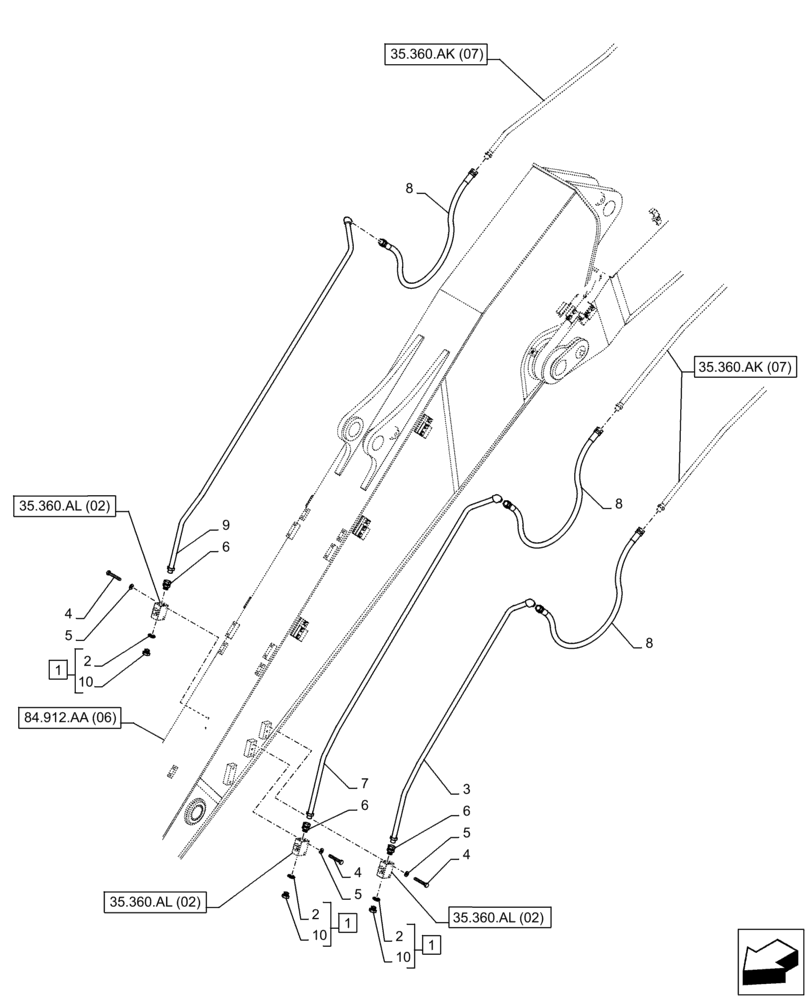

Схема запчастей Case CX350D LC - (35.360.AM[04]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=4.0M) (35) - HYDRAULIC SYSTEMS
2
7
5
8
84.912.aa (06)
1
35.360.al (02)
8
4
4
4
10
35.360.ak (07)
5
10
3
35.360.al (02)
35.360.al (02)
10
5
1
6
6
9
8
6
35.360.ak (07)
2
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152924A1

PLUG

ASSY, Incl 2 (Qty 1), 10

3шт.

2

154503A1

O-RING

3шт.

3

KSV29440

PIPE

1шт.

4

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

6шт.

5

150811A1

WASHER

6шт.

6

167248A1

FITTING

3шт.

7

KSV29420

PIPE

1шт.

8

KSV29880

HYDRAULIC HOSE

3шт.

9

KSV29430

PIPE

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

3шт.
