(35.360.AM[02]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=3.25M)

Запчасти Case CX350D LC (35.360.AM[02]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=3.25M) (35) - HYDRAULIC SYSTEMS

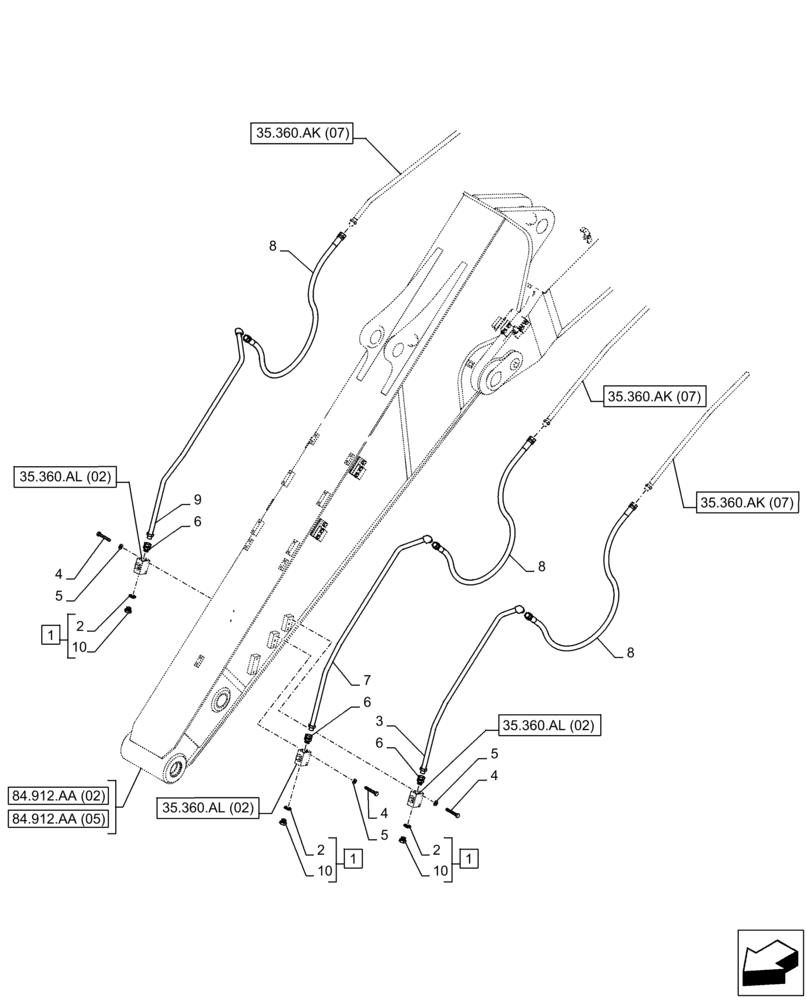

Схема запчастей Case CX350D LC - (35.360.AM[02]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=3.25M) (35) - HYDRAULIC SYSTEMS
10
5
2
35.360.ak (07)
4
6
5
10
5
35.360.al (02)
2
35.360.ak (07)
1
2
1
6
3
7
84.912.aa (02)
4
35.360.al (02)
10
8
9
1
35.360.al (02)
8
35.360.ak (07)
8
6
4
84.912.aa (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152924A1

PLUG

ASSY, Incl 2, 10

3шт.

2

154503A1

O-RING

3шт.

3

KSV24640

PIPE

1шт.

4

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

6шт.

5

150811A1

WASHER

6шт.

6

167248A1

FITTING

3шт.

7

KSV24580

PIPE

1шт.

8

KSV25530

HYDRAULIC HOSE

3шт.

9

KSV24590

PIPE

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

3шт.

Выбрано товаров: 10
