(35.360.AM[01]) - VAR - 461863 - BOOM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX350D LC (35.360.AM[01]) - VAR - 461863 - BOOM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

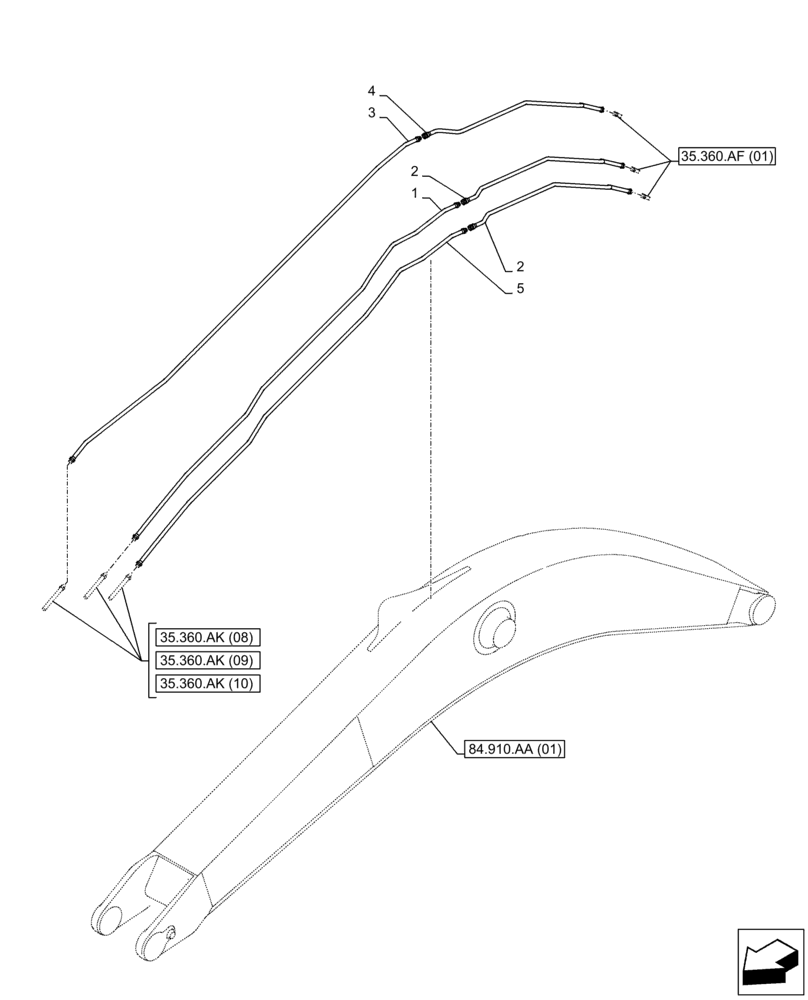

Схема запчастей Case CX350D LC - (35.360.AM[01]) - VAR - 461863 - BOOM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
5
35.360.ak (09)
84.910.aa (01)
35.360.ak (10)
35.360.ak (08)
2
1
3
35.360.af (01)
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSV24600

PIPE

1шт.

2

KSV24610

PIPE

2шт.

3

KSV24620

PIPE

1шт.

4

KSV24630

PIPE

1шт.

5

KSV24650

PIPE

1шт.

Выбрано товаров: 5
