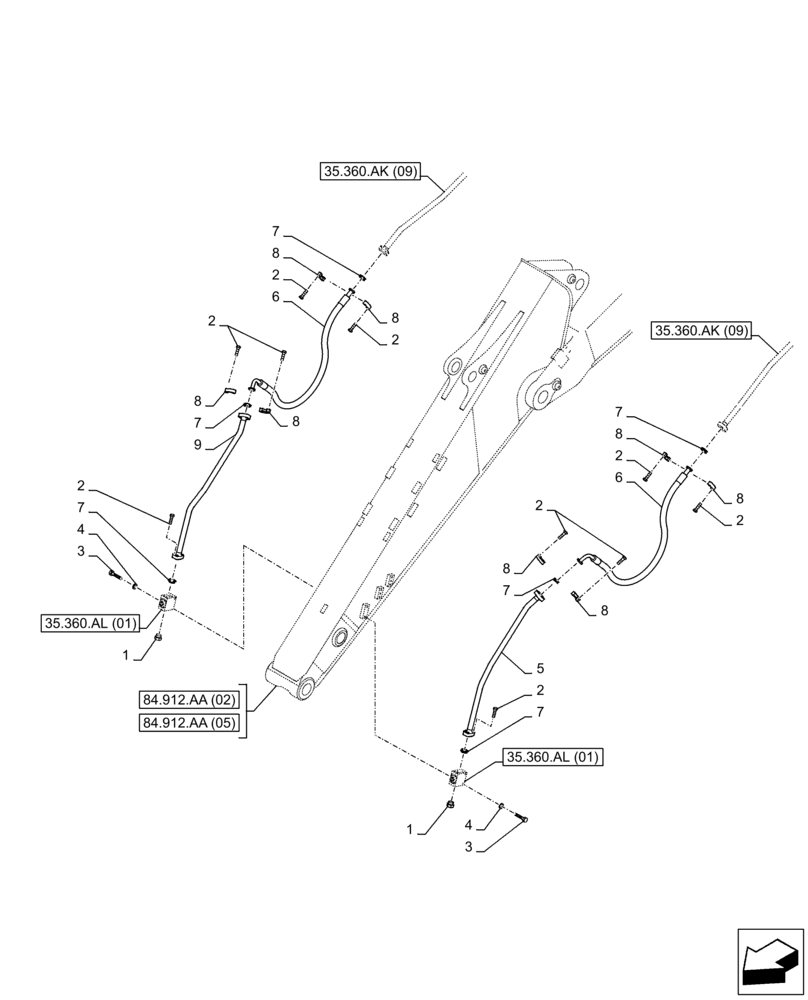

Запчасти Case CX350D LC (35.360.AK[04]) - VAR - 461561, 461563, 461865, 461869, 461871 - ARM, LINE, HAMMER, SHEARS, HIGH FLOW (ARM L=3.25M) (35) - HYDRAULIC SYSTEMS

1

162335A1

PLUG

2шт.

2

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

24шт.

3

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

4шт.

4

150811A1

WASHER

4шт.

5

KSV24520

PIPE

1шт.

6

KSV25490

HYDRAULIC HOSE

2шт.

7

164450A1

O-RING

3шт.

8

150124A1

FLANGE

8шт.

9

KSV24550

PIPE

1шт.
