(35.360.AK[02]) - VAR - 461865, 461869, 461871 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX350D LC (35.360.AK[02]) - VAR - 461865, 461869, 461871 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

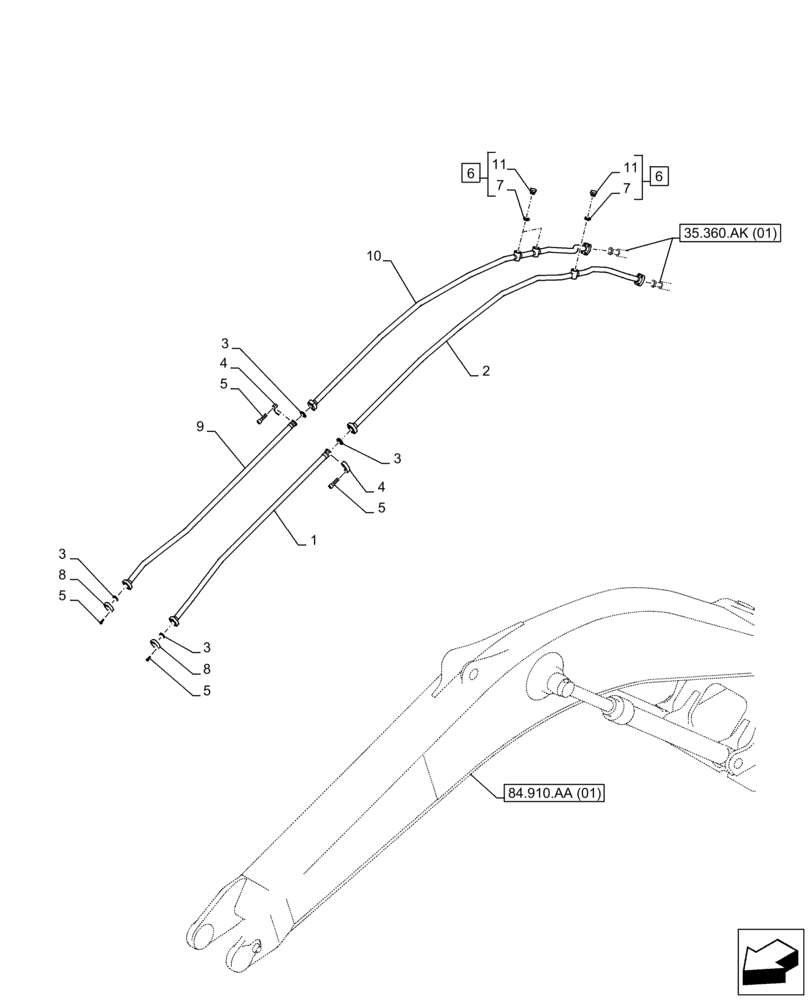

Схема запчастей Case CX350D LC - (35.360.AK[02]) - VAR - 461865, 461869, 461871 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
5
7
8
2
11
84.910.aa (01)
4
3
6
3
4
3
11
5
3
7
9
5
10
1
6
8
5
35.360.ak (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSV24530

PIPE

1шт.

2

KSV24541

PIPE

1шт.

3

153626A1

O-RING

4шт.

4

150124A1

FLANGE

4шт.

5

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

16шт.

6

152924A1

PLUG

ASSY, Incl 7, 11

3шт.

7

150542A1

O-RING

3шт.

8

KUP0009

FLANGE

5шт.

9

KSV24560

PIPE

1шт.

10

KSV24571

PIPE

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

3шт.

Выбрано товаров: 11
