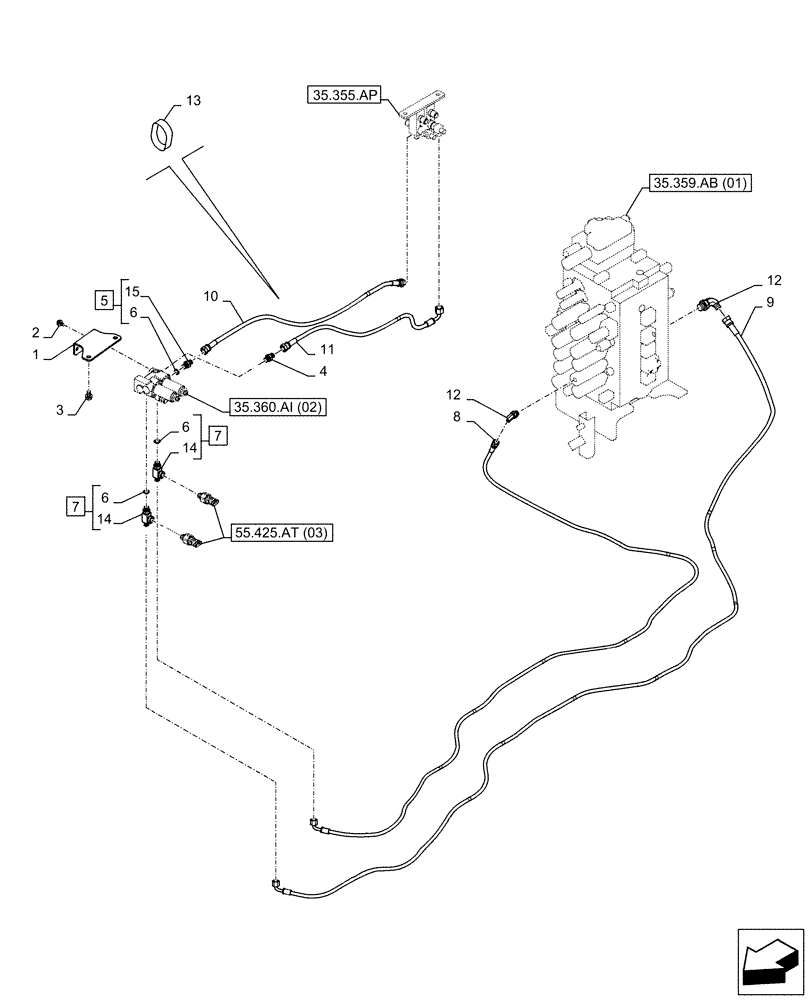

Запчасти Case CX350D LC (35.360.AJ[05]) - VAR - 461871 - SHEARS, SOLENOID VALVE, LINE, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ28770

BRACKET

1шт.

2

166345A1

BOLT

2шт.

3

166351A1

BOLT,Sems, M10 x 20mm

2шт.

4

161841A1

HYD CONNECTOR

1шт.

5

167666A1

FITTING

ASSY, Incl 6 (Qty 1), 15

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 6 (Qty 1), 14

2шт.

8

KHJ13660

HYDRAULIC HOSE

1шт.

9

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

10

KHJ2051

HOSE

1шт.

11

KHJ2093

HOSE

1шт.

12

KHJ28690

ELBOW

2шт.

13

150496A1

MOUNTING CLIP

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

2шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

2шт.
