(35.360.AJ[04]) - VAR - 461561, 461563, 461865, 461869 - HAMMER, SHEARS, SOLENOID VALVE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX350D LC (35.360.AJ[04]) - VAR - 461561, 461563, 461865, 461869 - HAMMER, SHEARS, SOLENOID VALVE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

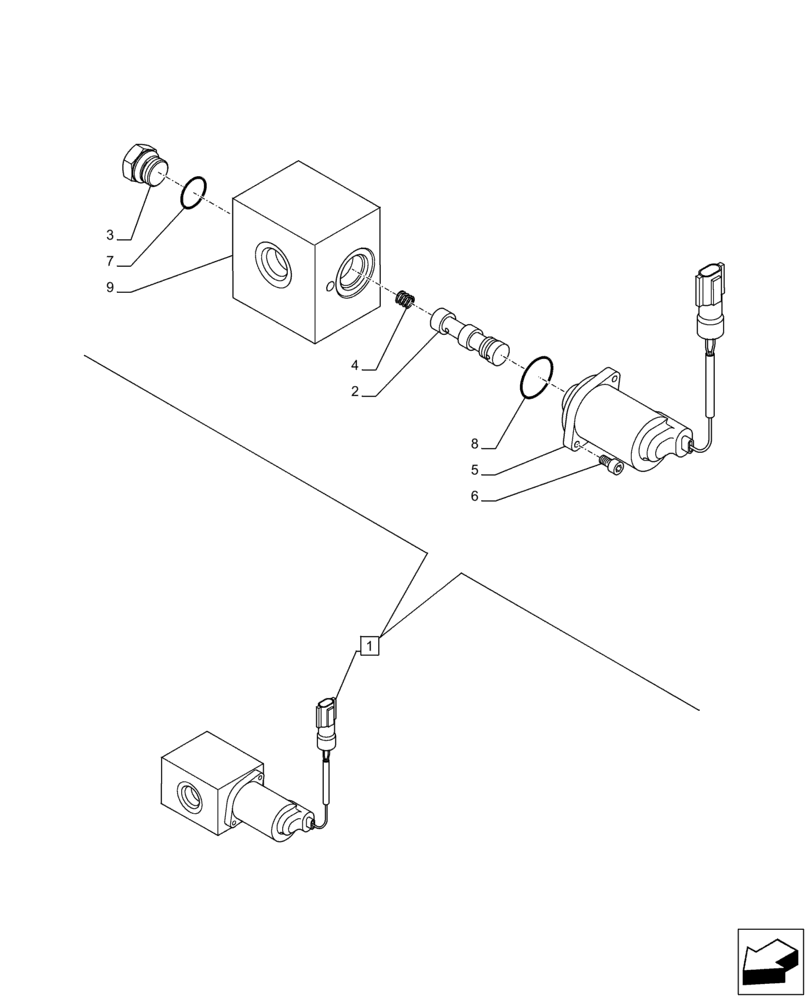

Схема запчастей Case CX350D LC - (35.360.AJ[04]) - VAR - 461561, 461563, 461865, 461869 - HAMMER, SHEARS, SOLENOID VALVE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
1
3
7
2
8
5
9
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162538A1

VALVE

ASSY, Incl 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

3

155456A1

PLUG

1шт.

4

LSC0278

COMPRESSION SPRING

1шт.

5

CDP0873

SOLENOID VALVE

1шт.

6

160298A1

BOLT,Hex Skt

2шт.

7

154462A1

O-RING

1шт.

8

154482A1

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

Выбрано товаров: 9
