(35.360.AJ[03]) - VAR - 461869 - HAMMER, SHEARS, SOLENOID VALVE, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX350D LC (35.360.AJ[03]) - VAR - 461869 - HAMMER, SHEARS, SOLENOID VALVE, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

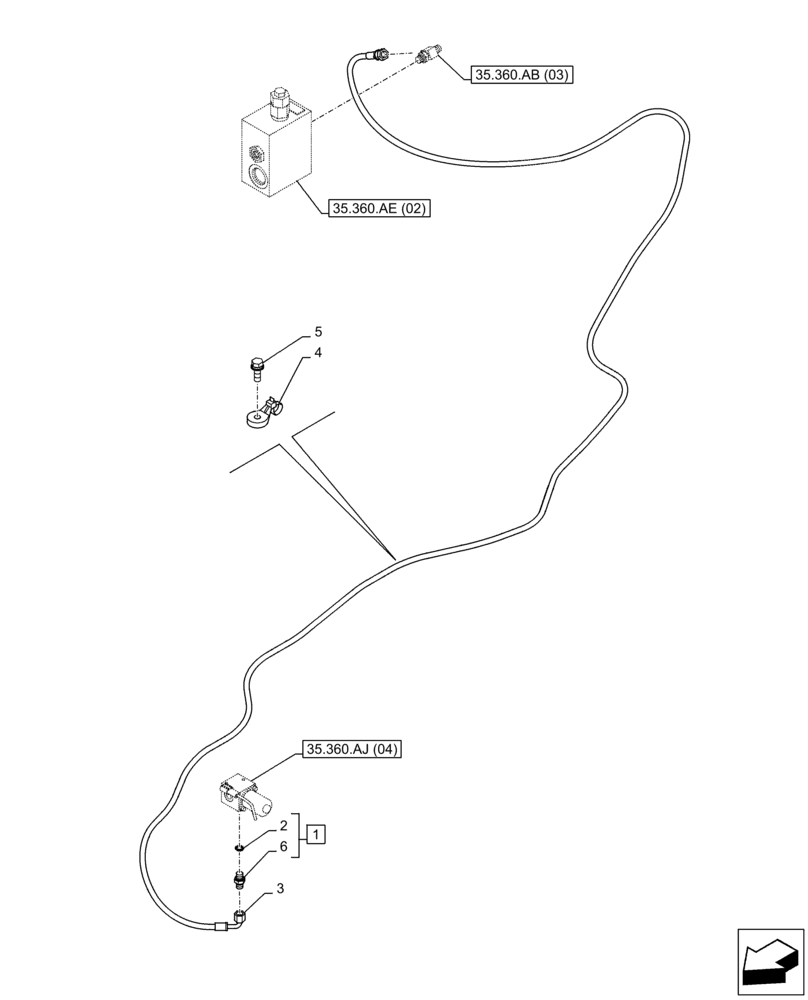

Схема запчастей Case CX350D LC - (35.360.AJ[03]) - VAR - 461869 - HAMMER, SHEARS, SOLENOID VALVE, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
6
35.360.ae (02)
1
3
4
35.360.aj (04)
2
5
35.360.ab (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 2, 6

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

KHJ14790

HYDRAULIC HOSE

1шт.

4

KHR2584

CLAMP

1шт.

5

KHJ1215

BOLT,Spcl

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

Выбрано товаров: 6
