(35.360.AJ[01]) - VAR - 461865 - HAMMER, SOLENOID VALVE, LINE, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX350D LC (35.360.AJ[01]) - VAR - 461865 - HAMMER, SOLENOID VALVE, LINE, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

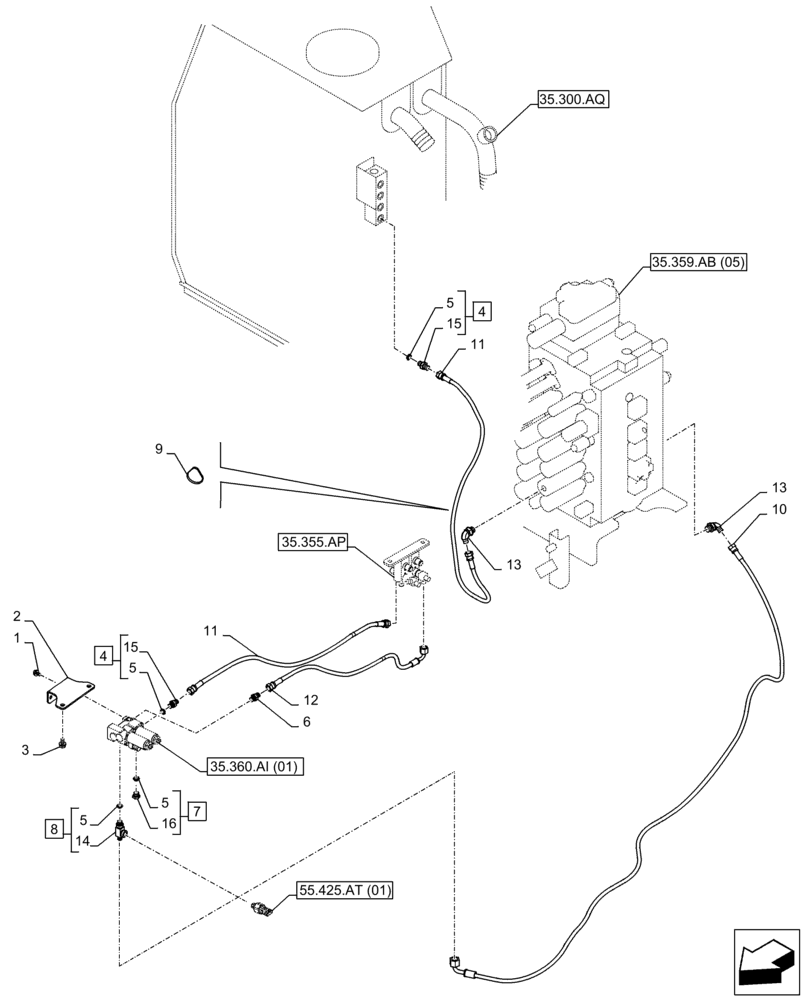

Схема запчастей Case CX350D LC - (35.360.AJ[01]) - VAR - 461865 - HAMMER, SOLENOID VALVE, LINE, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
5
7
15
5
10
1
15
13
5
35.355.ap
35.360.ai (01)
11
16
55.425.at (01)
9
13
11
3
8
12
35.359.ab (05)
6
4
5
35.300.aq
2
14
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

166345A1

BOLT

2шт.

2

KHJ28770

BRACKET

1шт.

3

166351A1

BOLT,Sems, M10 x 20mm

2шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 5 (Qty 1), 15

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

6

161841A1

HYD CONNECTOR

1шт.

7

159002A1

PLUG

ASSY, Incl 5 (Qty 1), 16

1шт.

8

167666A1

FITTING

ASSY, Incl 5 (Qty 1), 14

1шт.

9

150496A1

MOUNTING CLIP

2шт.

10

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

11

KHJ2051

HOSE

2шт.

12

KHJ2093

HOSE

1шт.

13

KHJ28690

ELBOW

2шт.

14

NSS

NOT SOLD SEPARAT

T - Fitting, Incl in 8

1шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

16

NSS

NOT SOLD SEPARAT

Plug, Incl in 7

1шт.
