(35.360.AI[02]) - VAR - 461869, 461871 - HAMMER CIRCUIT, SOLENOID VALVE, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX350D LC (35.360.AI[02]) - VAR - 461869, 461871 - HAMMER CIRCUIT, SOLENOID VALVE, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

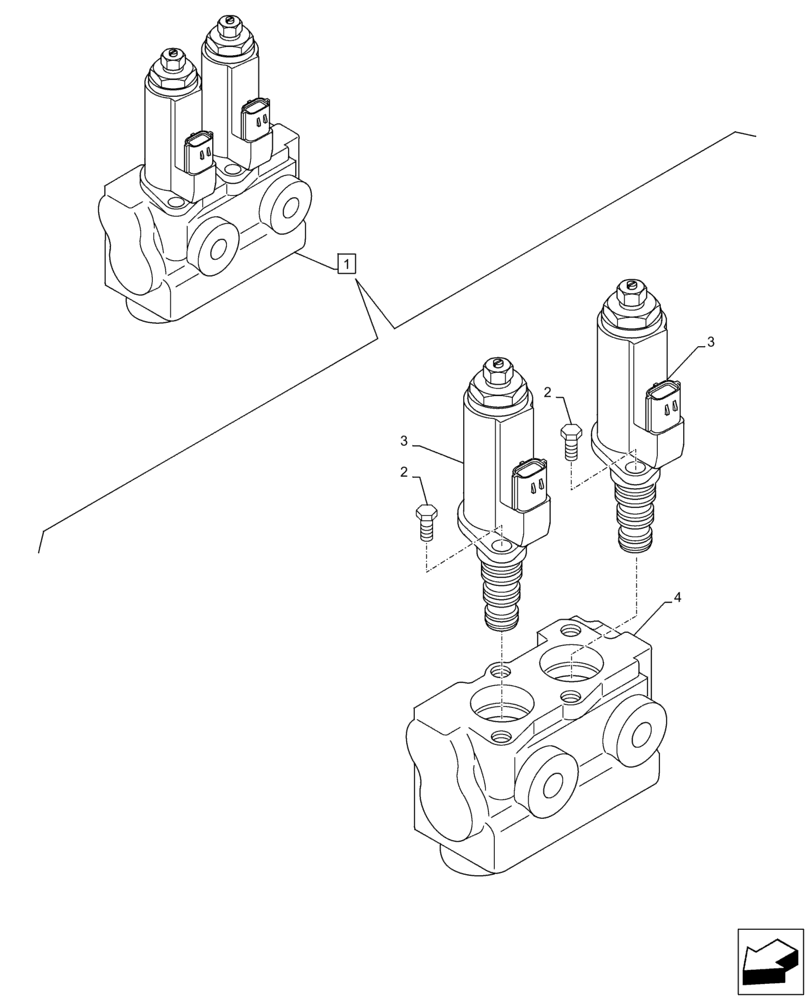

Схема запчастей Case CX350D LC - (35.360.AI[02]) - VAR - 461869, 461871 - HAMMER CIRCUIT, SOLENOID VALVE, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
3
2
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MFJ71500

VALVE SECTION

ASSY, Incl 2 - 4

1шт.

2

102R005Y012R

BOLT

4шт.

3

LJ017960

VALVE

2шт.

4

LW005920

BODY

1шт.

Выбрано товаров: 4
