(35.360.AF[02]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX350D LC (35.360.AF[02]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

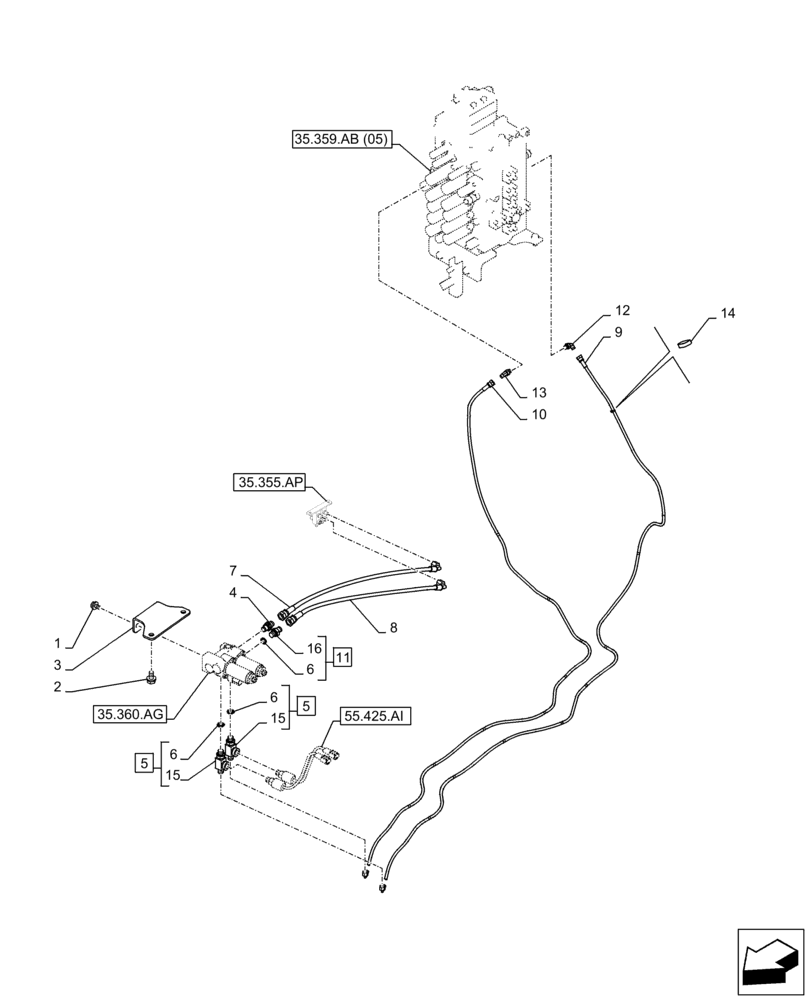

Схема запчастей Case CX350D LC - (35.360.AF[02]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
3
6
9
12
35.359.ab (05)
16
11
6
35.355.ap
8
5
15
4
15
35.360.ag
13
1
6
5
55.425.ai
10
2
14
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

166345A1

BOLT

2шт.

2

166351A1

BOLT,Sems, M10 x 20mm

2шт.

3

KHJ28770

BRACKET

1шт.

4

161841A1

HYD CONNECTOR

1шт.

5

167666A1

FITTING

ASSY, Incl 6 (Qty 1), 15

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

7

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

1шт.

8

KHJ2088

HOSE

1шт.

9

KHJ11480

HYDRAULIC HOSE,6.35 mm ID x 3950.00 mm

1шт.

10

KHJ15160

HYDRAULIC HOSE

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 6 (Qty 1), 16

1шт.

12

KHJ28580

ELBOW

1шт.

13

KHJ28630

ELBOW

1шт.

14

150496A1

MOUNTING CLIP

2шт.

15

NSS

NOT SOLD SEPARAT

T - Fitting, Incl in 5

2шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.
