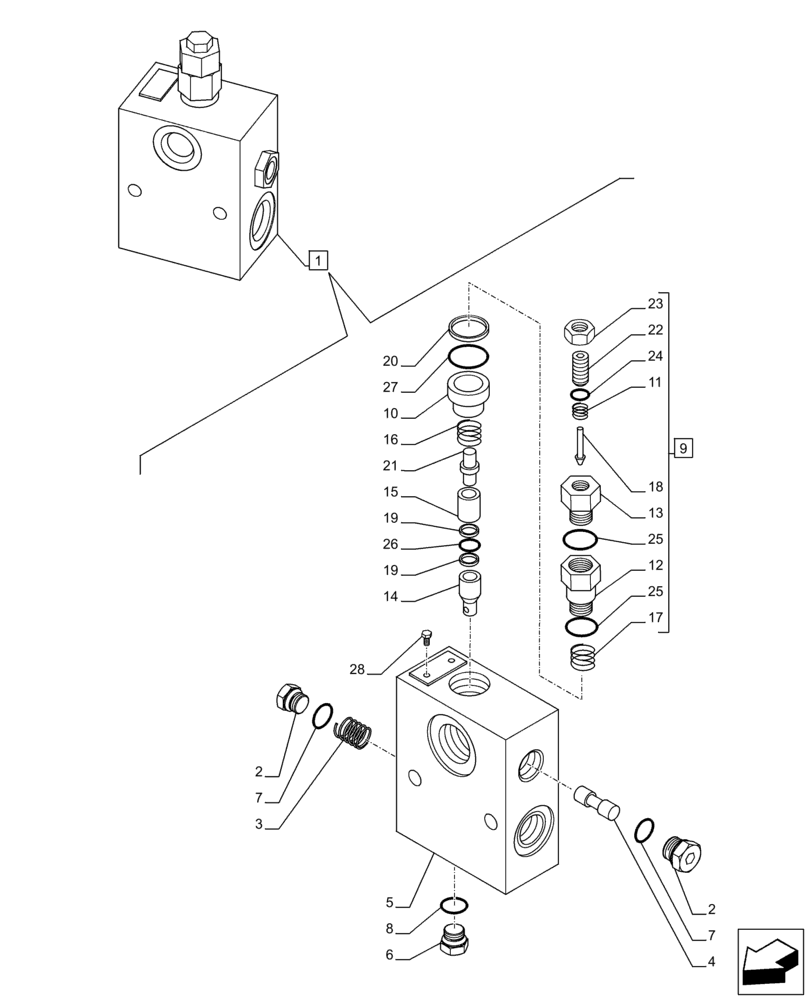

Запчасти Case CX350D LC (35.360.AE[01]) - VAR - 461865 - HAMMER CIRCUIT, SELECTOR, VALVE, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ15050

VALVE PRESSURE RELIE

ASSY, Incl 2 - 28

1шт.

2

LG005580

STOP LOCK

2шт.

3

LG005790

COMPRESSION SPRING

1шт.

4

NSS

NOT SOLD SEPARAT

Spool, Incl In 1

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl In 1

1шт.

6

155515A1

PLUG

1шт.

7

154487A1

O-RING

2шт.

8

154475A1

O-RING

1шт.

9

KHJ15850

VALVE PRESSURE RELIE

ASSY, Incl 11 - 27

1шт.

10

NSS

NOT SOLD SEPARAT

Piston, Incl In 1

1шт.

11

NSS

NOT SOLD SEPARAT

Spring, Incl In 1

1шт.

12

NSS

NOT SOLD SEPARAT

Adapter, Incl In 1

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Incl In 1

1шт.

14

NSS

NOT SOLD SEPARAT

Poppet, Incl In 1

1шт.

15

NSS

NOT SOLD SEPARAT

Poppet, Incl In 1

1шт.

16

NSS

NOT SOLD SEPARAT

Spring, Incl In 1

1шт.

17

NSS

NOT SOLD SEPARAT

Spring, Incl In 1

1шт.

18

NSS

NOT SOLD SEPARAT

Valve, Incl In 1

1шт.

19

NSS

NOT SOLD SEPARAT

Ring, Incl In 1

2шт.

20

NSS

NOT SOLD SEPARAT

Ring, Incl In 1

1шт.

21

NSS

NOT SOLD SEPARAT

Pin, Incl In 1

1шт.

22

NSS

NOT SOLD SEPARAT

Screw, Incl In 1

1шт.

23

174R012SR

JAM NUT

1шт.

24

154463A1

O-RING

1шт.

25

155223A1

O-RING

2шт.

26

154457A1

O-RING

1шт.

27

154481A1

O-RING

1шт.

28

LA00769

RIVET

2шт.
