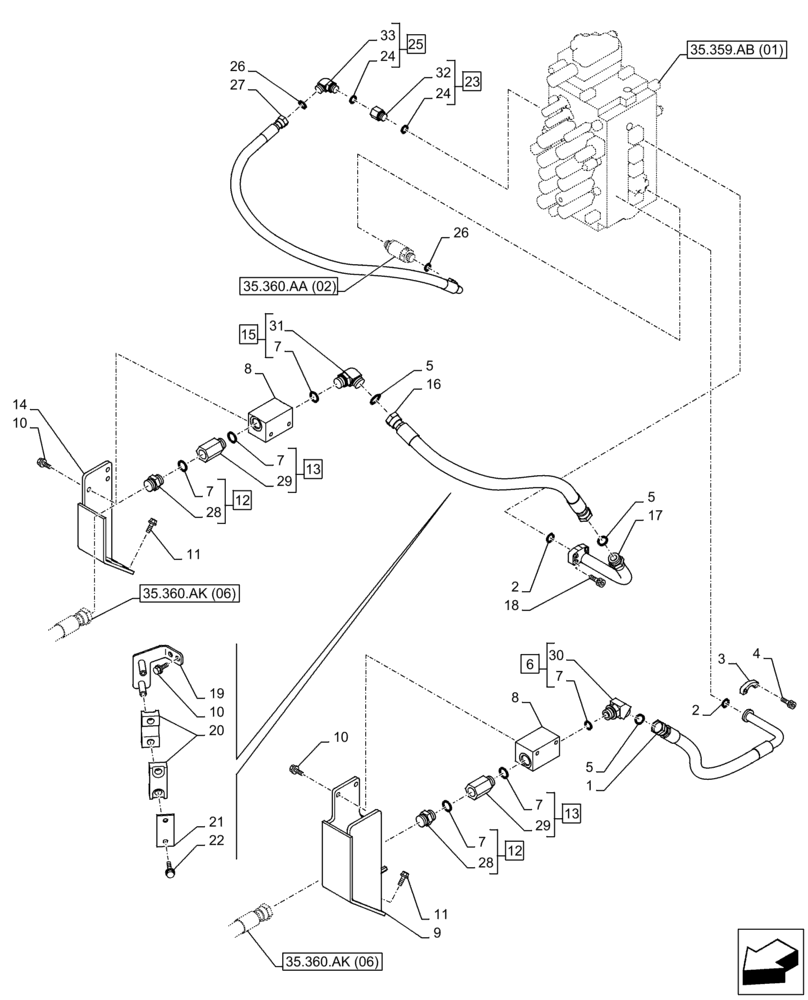

Запчасти Case CX350D LC (35.360.AB[06]) - VAR - 461871 - SHEARS, LINE, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KSJ19080

HOSE

1шт.

2

155211A1

O-RING

2шт.

3

153459A1

FLANGE

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

3шт.

6

KHJ11370

ELBOW

ASSY, Incl 7 (Qty 1), 30

1шт.

7

154523A1

O-RING

7шт.

8

KRJ12170

MANIFOLD VALVE

2шт.

9

KSJ17120

BRACKET

1шт.

10

166352A1

BOLT

6шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

8шт.

12

KHJ1349

ADAPTER

ASSY, Incl 7 (Qty 1), 28

2шт.

13

KHJ25900

SOCKET

ASSY, Incl 7 (Qty 1), 29

2шт.

14

KSJ16040

BRACKET

1шт.

15

KHJ1805

ELBOW

ASSY, Incl 7 (Qty 1), 31

1шт.

16

KSJ13731

HYDRAULIC HOSE

1шт.

17

KSJ20990

PIPE

1шт.

18

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

19

KSJ21000

BRACKET

1шт.

20

KRJ11450

HOSE CLIP

2шт.

21

KRJ10800

PLATE

1шт.

22

166052A1

BOLT

2шт.

23

159198A1

ADAPTER

ASSY, Incl 24 (Qty 1), 32

1шт.

24

154503A1

O-RING

2шт.

25

KHJ1804

ELBOW

ASSY, Incl 24 (Qty 1), 33

1шт.

26

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

27

KSJ19120

HOSE

1шт.

28

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

2шт.

29

NSS

NOT SOLD SEPARAT

Fitting, Incl in 13

2шт.

30

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 6

1шт.

31

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 15

1шт.

32

NSS

NOT SOLD SEPARAT

Fitting, Incl in 23

1шт.

33

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 25

1шт.
