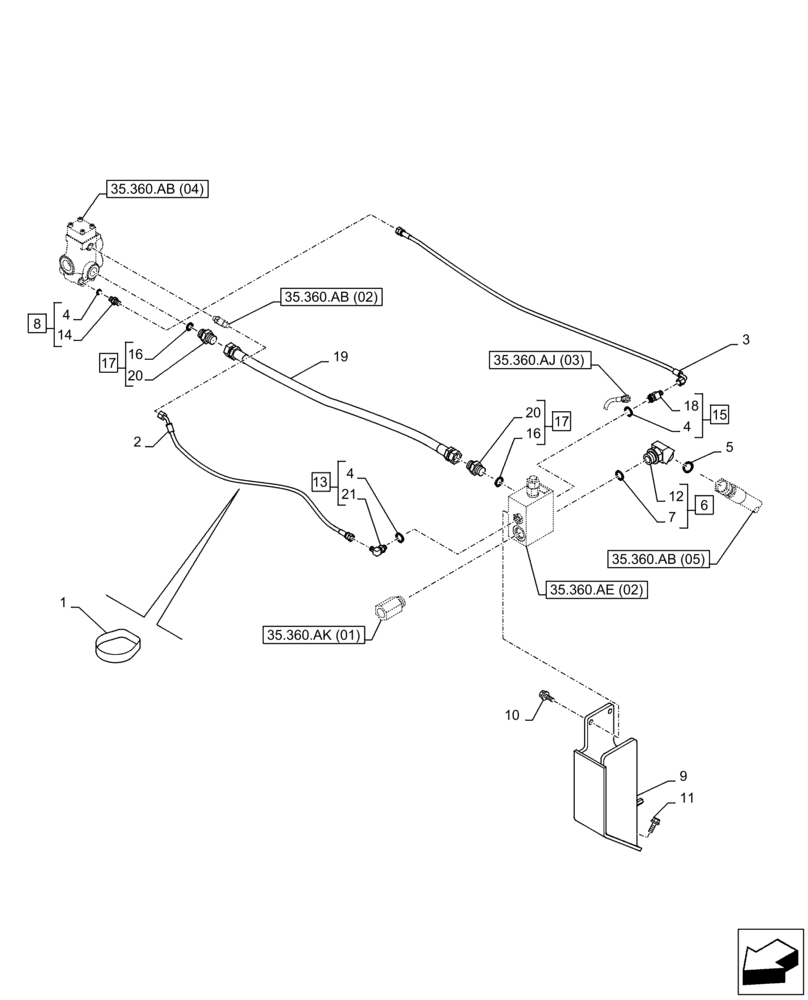

Запчасти Case CX350D LC (35.360.AB[03]) - VAR - 461869 - HAMMER CIRCUIT, SHEARS, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

150496A1

MOUNTING CLIP

6шт.

2

KHJ24910

HOSE ASSY.

1шт.

3

KHJ2090

HOSE

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KHJ11370

ELBOW

ASSY, Incl 7, 12

1шт.

7

154523A1

O-RING

1шт.

8

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 4 (Qty 1), 14

1шт.

9

KSJ17120

BRACKET

1шт.

10

166352A1

BOLT

2шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

12

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 6

1шт.

13

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

ASSY, Incl 4 (Qty 1), 21

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

15

159497A1

TEE

ASSY, Incl 4 (Qty 1), 18

2шт.

16

154503A1

O-RING

2шт.

17

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 16 (Qty 1), 20

2шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 15

1шт.

19

KSJ17140

HYDRAULIC HOSE

1шт.

20

NSS

NOT SOLD SEPARAT

Fitting, Incl in 17

2шт.

21

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 13

1шт.
