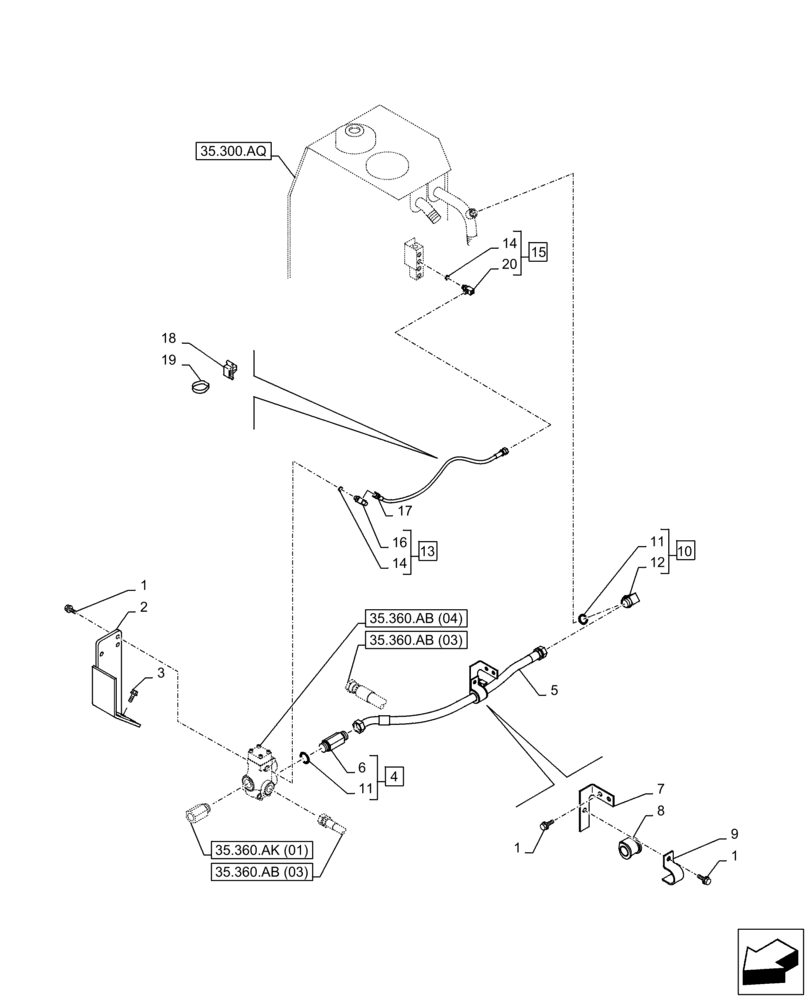

Запчасти Case CX350D LC (35.360.AB[02]) - VAR - 461869 - HAMMER CIRCUIT, SHEARS, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

166352A1

BOLT

5шт.

2

KSJ16040

BRACKET

1шт.

3

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

4

KTJ1261

STUD

ASSY, Incl 6, 11 (Qty 1)

1шт.

5

KSJ19130

HOSE

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

KBJ15230

BRACKET, SUPPORTING

1шт.

8

KHJ2680

COLLAR CLAMP

1шт.

9

KBJ11860

SUPPORT

1шт.

10

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY, Incl 12, 11 (Qty 1)

1шт.

11

154523A1

O-RING

2шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

1шт.

13

159497A1

TEE

ASSY, Incl 14 (Qty 1), 16

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

15

KHJ2773

TEE

ASSY, Incl 14 (Qty 1), 20

1шт.

16

NSS

NOT SOLD SEPARAT

T - Fitting, Incl in 13

1шт.

17

KHJ2051

HOSE

1шт.

18

KHR10220

MOUNTING CLIP

3шт.

19

150496A1

MOUNTING CLIP

6шт.

20

NSS

NOT SOLD SEPARAT

T - Fitting, Incl in 15

1шт.
