(35.359.AY[02]) - VAR - 461863 - RELIEF VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX350D LC (35.359.AY[02]) - VAR - 461863 - RELIEF VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

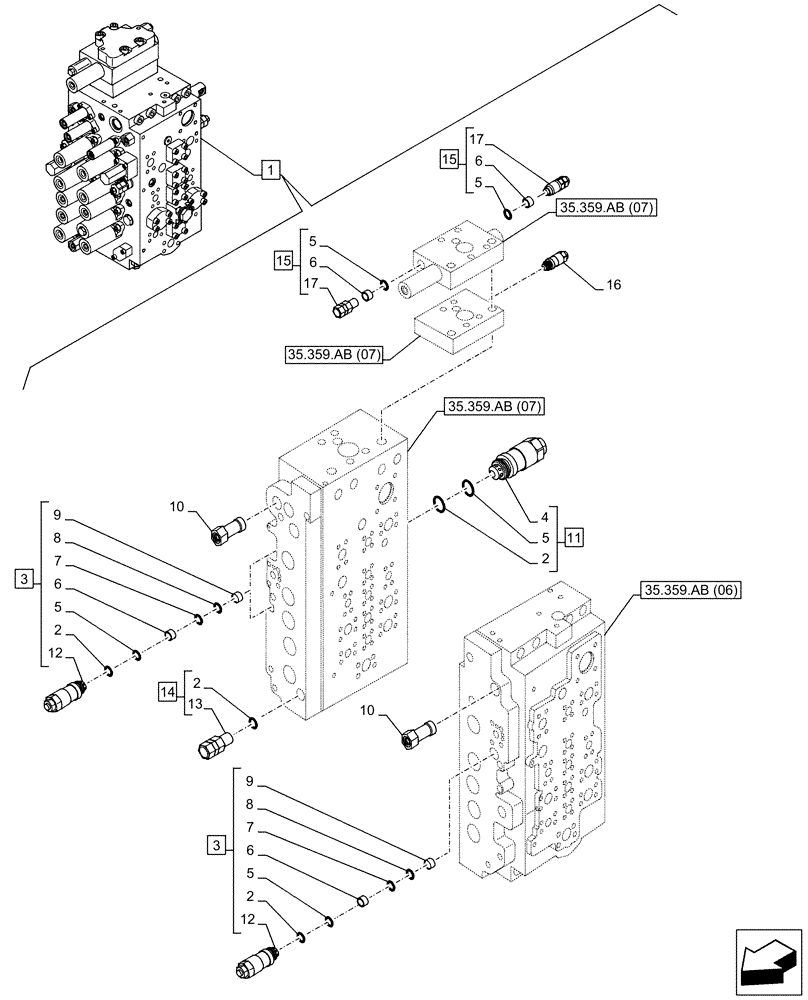

Схема запчастей Case CX350D LC - (35.359.AY[02]) - VAR - 461863 - RELIEF VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.359.ab (06)
3
8
7
15
12
9
2
17
4
9
6
6
3
15
6
1
5
6
13
17
14
7
2
5
12
5
2
10
16
10
11
8
5
2
5
35.359.ab (07)
35.359.ab (07)
35.359.ab (07)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSJ18322

CONTROL VALVE

ASSY, Incl 2 - 17

1шт.

See also Figure 35.359.AB (05), 35.359.AB (06), 35.359.AB (07), 35.359.AB (08)

1шт.

2

155223A1

O-RING

5шт.

3

LJ00734

HYDRAULIC VALVE

ASSY, Incl 2 (Qty 1), 5 (Qty 1), 6 - 9, 12

3шт.

4

NSS

NOT SOLD SEPARAT

Valve, Incl in 11

1шт.

5

154463A1

O-RING

6шт.

6

164905A1

BACK-UP RING

5шт.

7

164906A1

O-RING

1шт.

8

163323A1

O-RING

1шт.

9

164575A1

BACK-UP RING

3шт.

10

LJ022730

VALVE

2шт.

11

LJ019000

VALVE PRESSURE RELIE

ASSY, Incl 2 (Qty 1), 4, 5 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

Valve, Incl in 3

1шт.

13

NSS

NOT SOLD SEPARAT

Valve, Incl in 14

1шт.

14

LJ018990

VALVE PRESSURE RELIE

ASSY, Incl 2 (Qty 1), 13

1шт.

15

LJ014750

CHECK VALVE

ASSY, Incl 2 (Qty 1), 5 (Qty 1), 17

2шт.

16

LJ019010

VALVE PRESSURE RELIE

1шт.

17

NSS

NOT SOLD SEPARAT

Valve, Incl in 15

1шт.
