(35.359.AB[05]) - VAR - 461863 - CONTROL VALVE, MOUNTING, BRACKET, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX350D LC (35.359.AB[05]) - VAR - 461863 - CONTROL VALVE, MOUNTING, BRACKET, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

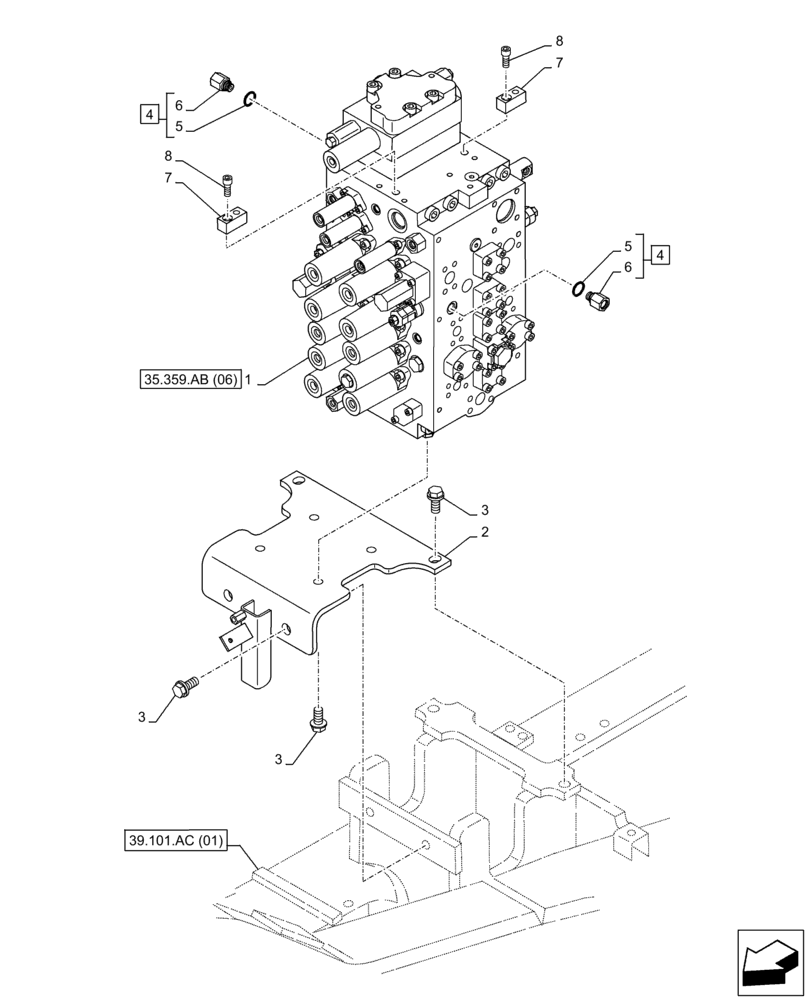

Схема запчастей Case CX350D LC - (35.359.AB[05]) - VAR - 461863 - CONTROL VALVE, MOUNTING, BRACKET, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
5
6
8
4
1
8
7
39.101.ac (01)
4
5
3
35.359.ab (06)
7
3
6
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSJ18322

CONTROL VALVE

ASSY, Control Valve

1шт.

See also Figure 35.359.AB (06), 35.359.AB (07), 35.359.AB (08), 35.359.AY (02)

1шт.

2

KSJ20750

BRACKET

1шт.

3

166373A1

BOLT,Sems, M16 x 40mm

M16 x 40mm

8шт.

4

KHJ18190

STUD

ASSY, Incl 5 - 6

2шт.

5

154475A1

O-RING

2шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

7

KBJ19550

BRACKET

2шт.

8

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

M12 x 30mm

2шт.
