(35.357.AR[02]) - PILOT VALVE, CONTROL VALVE LINE

Запчасти Case CX350D LC (35.357.AR[02]) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

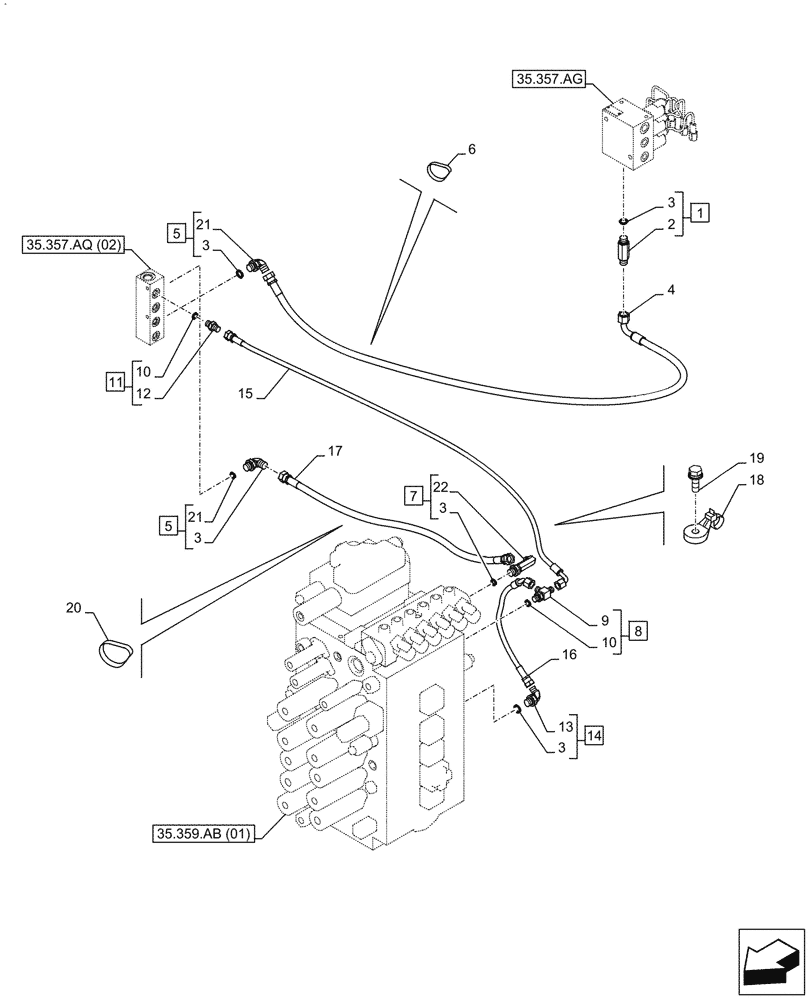

Схема запчастей Case CX350D LC - (35.357.AR[02]) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS
35.357.aq (02)
3
9
15
2
13
19
17
5
3
14
3
10
10
18
6
21
20
12
5
1
22
3
8
21
3
11
16
4
7
35.357.ag
35.359.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAJ2351

FITTING

ASSY, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

154475A1

O-RING

5шт.

4

KHJ16260

HYDRAULIC HOSE,9.52 mm ID x 1750.00 mm

9mm ID x 1750mm

1шт.

5

KHJ28590

ELBOW

ASSY, Incl 21, 3 (Qty 1)

2шт.

6

150496A1

MOUNTING CLIP

3шт.

7

KHJ28820

ELBOW

ASSY, Incl 22, 3 (Qty 1)

1шт.

8

159497A1

TEE

ASSY, Incl 9, 10 (Qty 1)

1шт.

9

NSS

NOT SOLD SEPARAT

T - Fitting, Incl in 8

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 12, 10 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

Adapter, incl in 11

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.

14

KHJ28690

ELBOW

ASSY, Incl 13, 3 (Qty 1)

1шт.

15

KHJ2163

HOSE

6mm ID x 620mm

1шт.

16

KHJ16200

HYDRAULIC HOSE,6.35 mm ID x 400.00 mm

6mm ID x 400mm

1шт.

17

KHJ2808

HOSE

9mm ID x 750mm

1шт.

18

KHR2585

CLAMP

3шт.

19

KHJ2298

BOLT,Spcl

3шт.

20

150498A1

MOUNTING CLIP

1шт.

21

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

2шт.

22

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.
