(35.357.AR[01]) - PILOT VALVE, CONTROL VALVE LINE

Запчасти Case CX350D LC (35.357.AR[01]) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

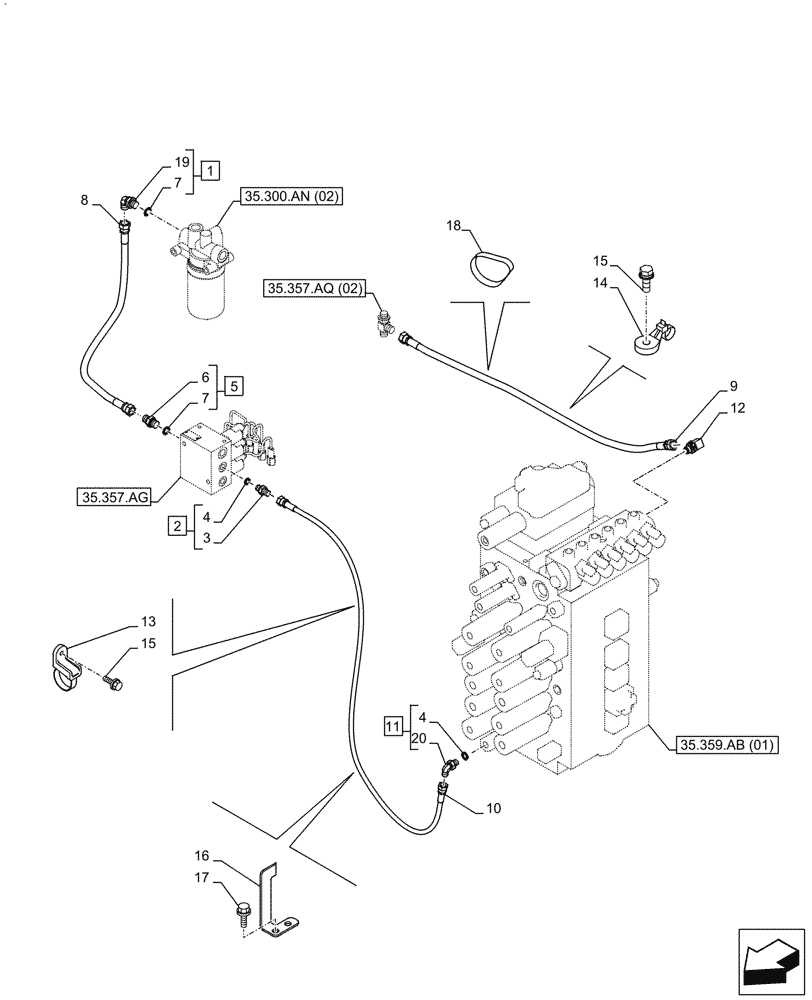

Схема запчастей Case CX350D LC - (35.357.AR[01]) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS
35.357.aq (02)
9
17
1
13
2
7
5
3
14
19
6
16
7
18
4
8
20
15
15
12
4
11
10
35.300.an (02)
35.357.ag
35.359.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ28590

ELBOW

ASSY, Incl 7 (Qty 1), 19

1шт.

2

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 3 - 4

1шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 6, 7 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

7

154475A1

O-RING

2шт.

8

KHJ2170

HOSE

9mm ID x 400mm

1шт.

9

KHJ2381

HOSE ASSY.

9mm ID x 1600mm

1шт.

10

KHJ2143

HOSE

6mm ID x 1950mm

1шт.

11

KHJ28580

ELBOW

ASSY, Incl 4 (Qty 1), 20

1шт.

12

KHJ29610

ELBOW

1шт.

13

KHR2581

CLAMP

3шт.

14

KHR2584

CLAMP

1шт.

15

KHJ1215

BOLT,Spcl

4шт.

16

KHJ30570

BRACKET

1шт.

17

166352A1

BOLT

2шт.

18

150496A1

MOUNTING CLIP

3шт.

19

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 11

1шт.
