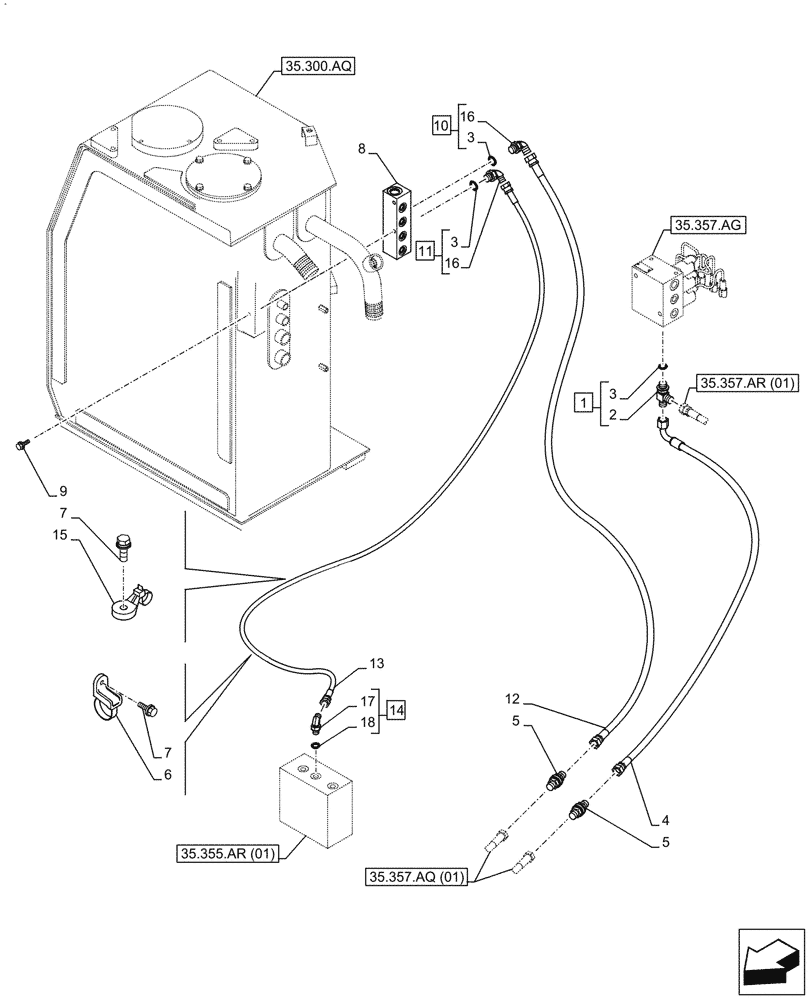

Запчасти Case CX350D LC (35.357.AQ[02]) - PILOT VALVE, DRAIN LINE (35) - HYDRAULIC SYSTEMS

1

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

T - Fitting, Incl in 1

1шт.

3

154475A1

O-RING

3шт.

4

KHJ21900

HYDRAULIC HOSE

9mm ID x 3150mm

1шт.

5

162826A1

ADAPTER

2шт.

6

KHR2581

CLAMP

1шт.

7

KHJ1215

BOLT,Spcl

1шт.

8

KSJ18530

MANIFOLD

1шт.

9

166350A1

BOLT

M8 x 20mm

2шт.

10

KHJ28590

ELBOW

ASSY, Incl 16, 3 (Qty 1)

1шт.

11

KHJ28690

ELBOW

ASSY, Incl 16, 3 (Qty 1)

1шт.

16

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 11

1шт.

12

KHJ2207

HOSE

9mm ID x 2600mm

1шт.

13

KHJ2075

HOSE

6mm ID x 2650mm

1шт.

14

KHJ28580

ELBOW

ASSY, Incl 17 - 18

1шт.

15

KHR2584

CLAMP

1шт.

16

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 10

1шт.

17

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 14

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
