(35.357.AO[01]) - STD + VAR - 461558 - MAIN, SOLENOID VALVE, PRESSURE PIPE, CONTROL PATTERN SELECTION

Запчасти Case CX350D LC (35.357.AO[01]) - STD + VAR - 461558 - MAIN, SOLENOID VALVE, PRESSURE PIPE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

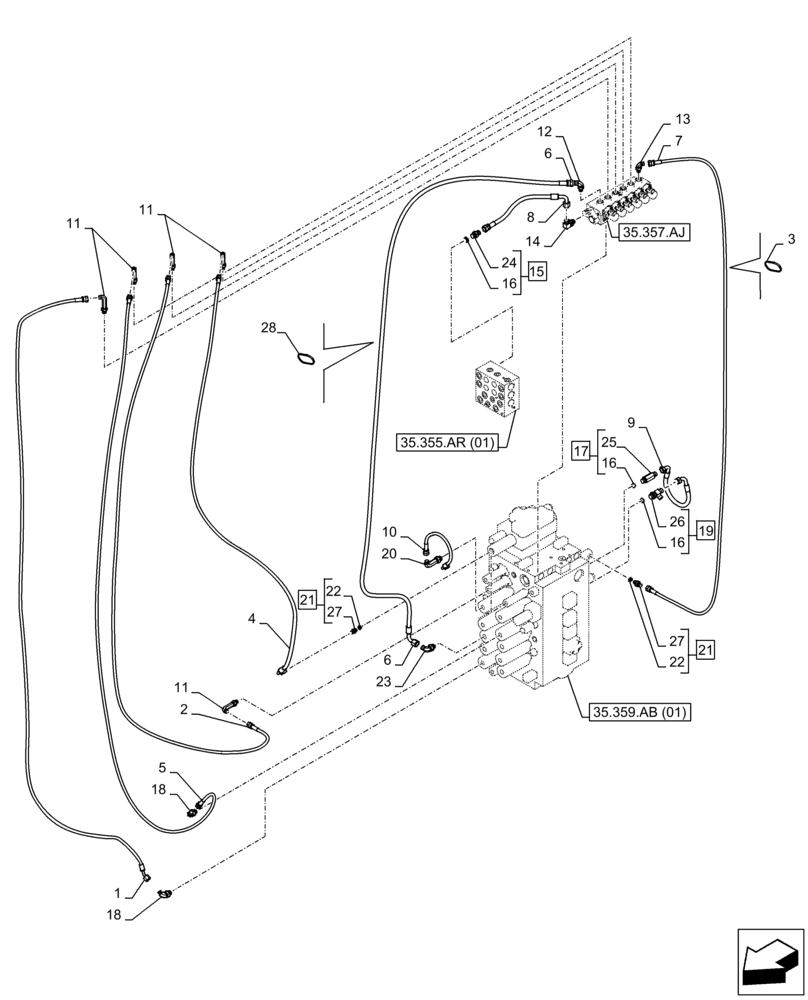

Схема запчастей Case CX350D LC - (35.357.AO[01]) - STD + VAR - 461558 - MAIN, SOLENOID VALVE, PRESSURE PIPE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
18
26
18
24
25
16
27
7
4
1
15
6
21
13
19
11
9
17
12
16
11
35.357.aj
8
22
10
23
22
28
20
27
35.359.ab (01)
11
6
14
16
21
5
2
35.355.ar (01)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ14910

HYDRAULIC HOSE,6.35 mm ID x 800.00 mm

1шт.

2

KHJ2394

HOSE ASSY.

6mm ID x 550mm

1шт.

3

150496A1

MOUNTING CLIP

2шт.

4

KHJ2239

HOSE,520.00 mm

6mm ID x 520mm

1шт.

5

KHJ2047

HOSE

6mm ID x 650mm

1шт.

6

KHJ2809

HOSE,9.5 mm ID x 600.00 mm

1шт.

7

KHJ2190

HOSE

6mm ID x 420mm

1шт.

8

KHJ14110

HYDRAULIC HOSE

9mm ID x 2150mm

1шт.

9

KHJ32680

HOSE

09mm ID x 390mm

1шт.

10

KHJ2342

HOSE

6mm ID x 380mm

1шт.

11

KHJ28810

ELBOW

5шт.

12

KHJ28710

ELBOW

1шт.

13

KHJ28580

ELBOW

2шт.

14

KHJ29610

ELBOW

1шт.

15

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 24, 16 (Qty 1)

1шт.

16

150031A1

O-RING,10mm ID x 24mm OD

3шт.

17

KAJ2351

FITTING

ASSY, Incl 25, 16 (Qty 1)

1шт.

18

KHJ28690

ELBOW

2шт.

19

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, Incl 26, 16 (Qty 1)

1шт.

20

KHJ28880

ELBOW

1шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 22, 27

2шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

23

KHJ28590

ELBOW

1шт.

24

NSS

NOT SOLD SEPARAT

Fitting, Incl in 15

1шт.

25

NSS

NOT SOLD SEPARAT

Fitting, Incl in 17

1шт.

26

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 19

1шт.

27

NSS

NOT SOLD SEPARAT

Fitting, Incl in 21

2шт.

28

150498A1

MOUNTING CLIP

1шт.
