(35.357.AA) - PILOT ACCUMULATOR

Запчасти Case CX350D LC (35.357.AA) - PILOT ACCUMULATOR (35) - HYDRAULIC SYSTEMS

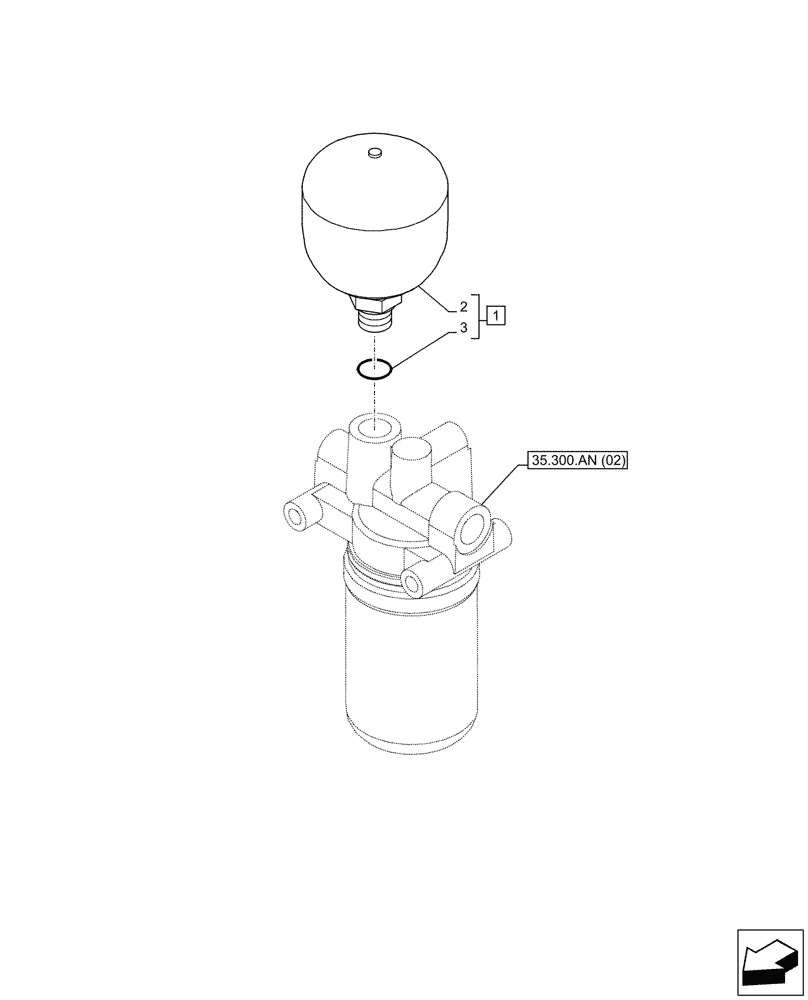

Схема запчастей Case CX350D LC - (35.357.AA) - PILOT ACCUMULATOR (35) - HYDRAULIC SYSTEMS
35.300.an (02)
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ27610

ACCUMULATOR

ASSY, Incl 2, Serial Range: -C0381

1шт.

Parts is included in Hydraulic Oil Filter Assembly PN KHJ17711

1шт.

1

KHJ2359

ACCUMULATOR

ASSY, Incl 2 - 3, Start Serial: D0381

1шт.

Parts is included in Hydraulic Oil Filter Assembly PN KHJ17710

1шт.

2

NSS

NOT SOLD SEPARAT

Accumulator, Incl in 1

1шт.

3

154487A1

O-RING

, Start Serial: D0381

1шт.
