(35.356.AR[05]) - STD + VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION

Запчасти Case CX350D LC (35.356.AR[05]) - STD + VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

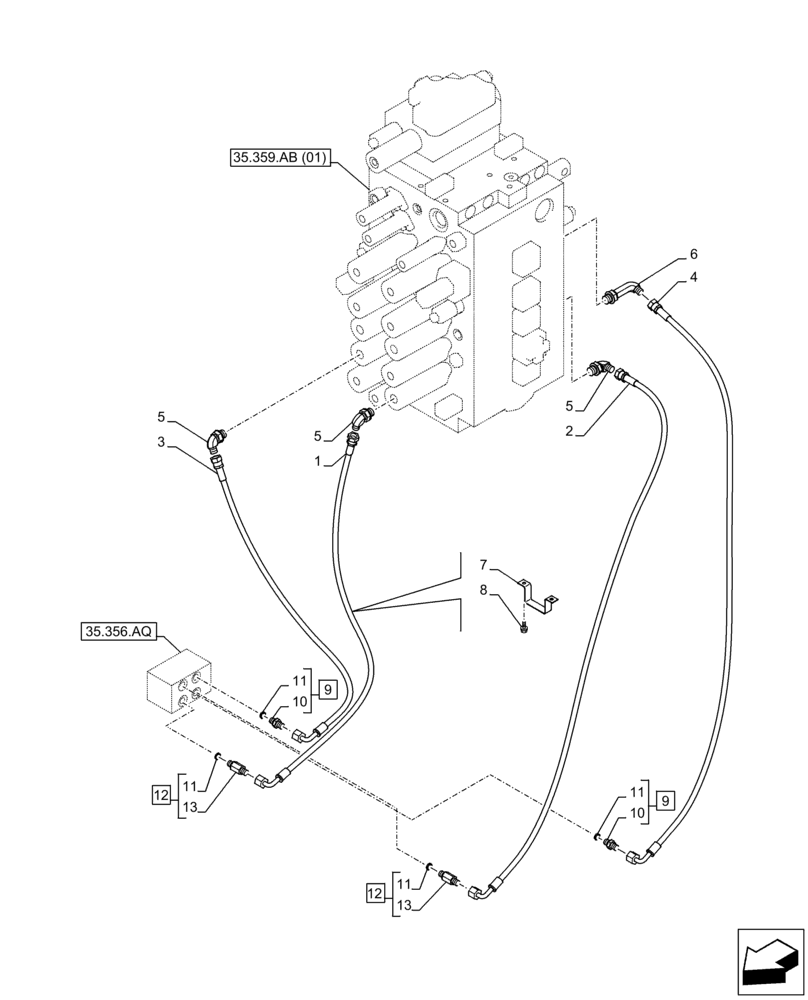

Схема запчастей Case CX350D LC - (35.356.AR[05]) - STD + VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
2
11
13
11
9
11
7
10
5
4
5
6
9
8
12
13
3
35.356.aq
35.359.ab (01)
5
10
11
12
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2340

HOSE

6mm ID x 2750mm

1шт.

2

KHJ17990

HOSE

6mm ID x 3150mm

1шт.

3

KHJ2167

HOSE

6mm ID x 2800mm

1шт.

4

KHJ13650

HYDRAULIC HOSE

6mm ID x 3200mm

1шт.

5

KHJ28690

ELBOW

G3/8" x G1/4"

3шт.

6

KHJ28880

ELBOW

1шт.

7

KHJ24020

CLAMP

2шт.

8

166345A1

BOLT

4шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 10, 11 (Qty 1)

2шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

12

162554A1

FITTING

ASSY, Incl 13, 11 (Qty 1)

2шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 12

2шт.
