(35.356.AR[04]) - STD + VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION

Запчасти Case CX350D LC (35.356.AR[04]) - STD + VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

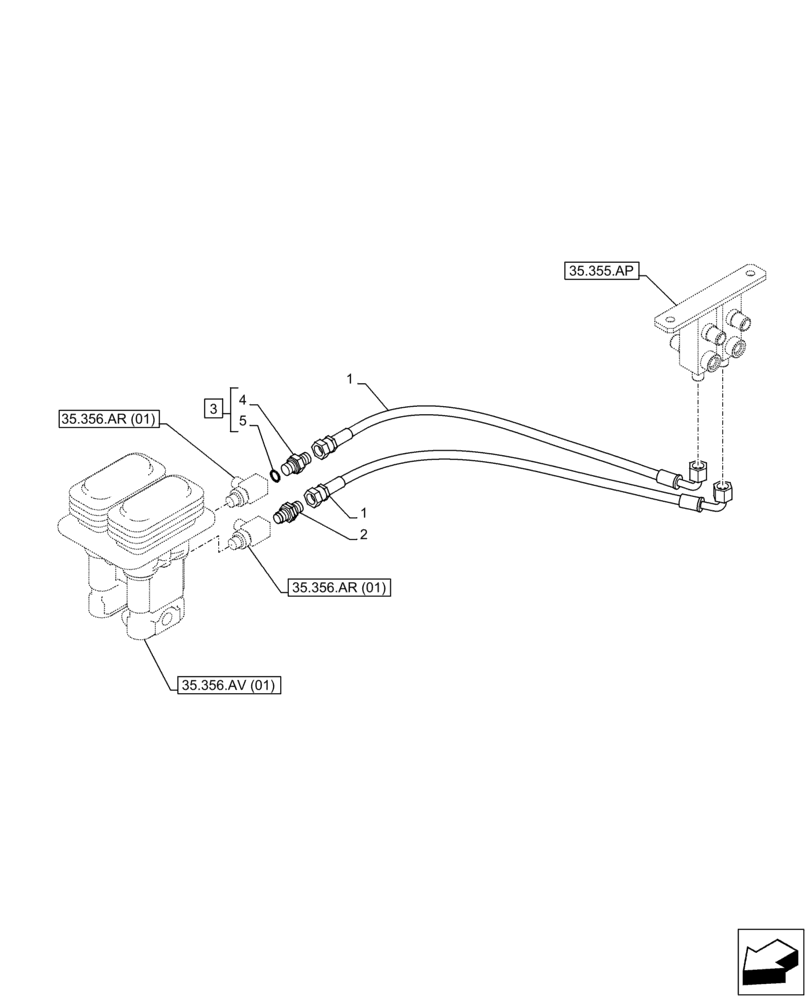

Схема запчастей Case CX350D LC - (35.356.AR[04]) - STD + VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
35.355.ap
2
35.356.ar (01)
5
35.356.ar (01)
1
4
1
35.356.av (01)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2092

HOSE

6mm ID x 1100mm

2шт.

2

161841A1

HYD CONNECTOR

1шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 4 - 5

1шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

Выбрано товаров: 5
