(35.355.AO) - STD + VAR - 461558 - JOYSTICK, DRAIN LINE, BLOCK, CONTROL PATTERN SELECTION

Запчасти Case CX350D LC (35.355.AO) - STD + VAR - 461558 - JOYSTICK, DRAIN LINE, BLOCK, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

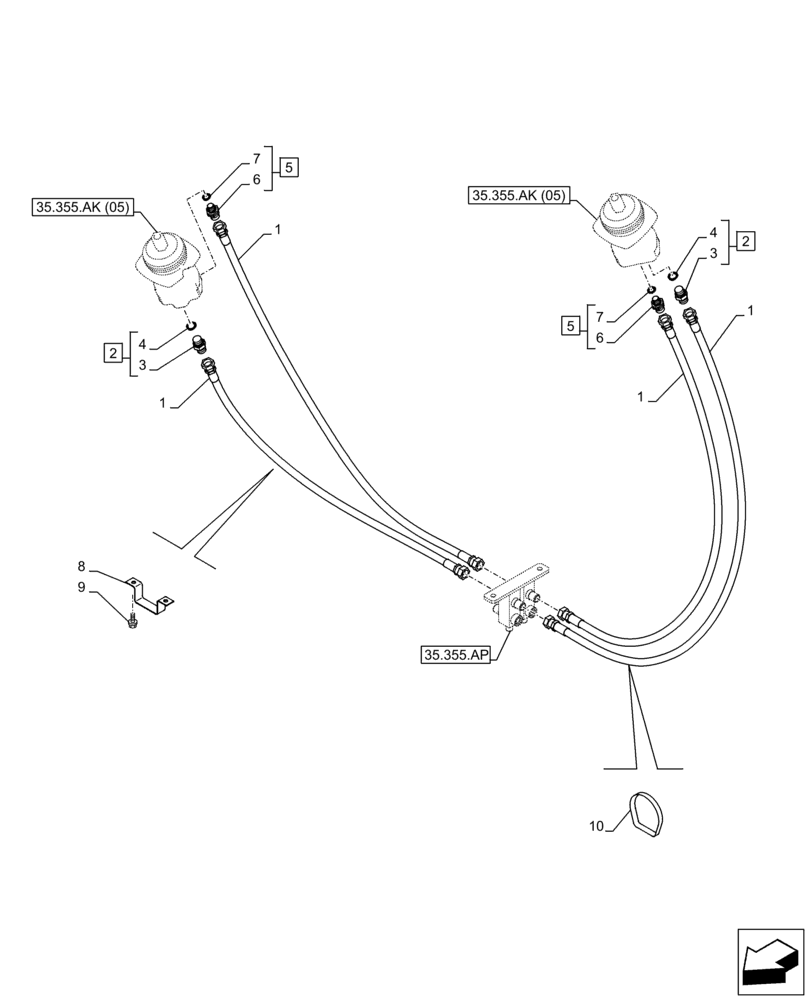

Схема запчастей Case CX350D LC - (35.355.AO) - STD + VAR - 461558 - JOYSTICK, DRAIN LINE, BLOCK, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
35.355.ak (05)
7
6
1
7
35.355.ap
3
35.355.ak (05)
2
2
1
6
9
3
4
10
1
5
8
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159213A1

HYDRAULIC HOSE

9mm ID x 1150mm

4шт.

2

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 3, 4 (Qty 1)

2шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

4

154475A1

O-RING

2шт.

5

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

ASSY, Incl 6, 7 (Qty 1)

2шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

8

KHJ1220

COLLAR

1шт.

9

166345A1

BOLT

M8 x 16mm

2шт.

10

150498A1

MOUNTING CLIP

300mm

2шт.
