(35.355.AC[04]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX350D LC (35.355.AC[04]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

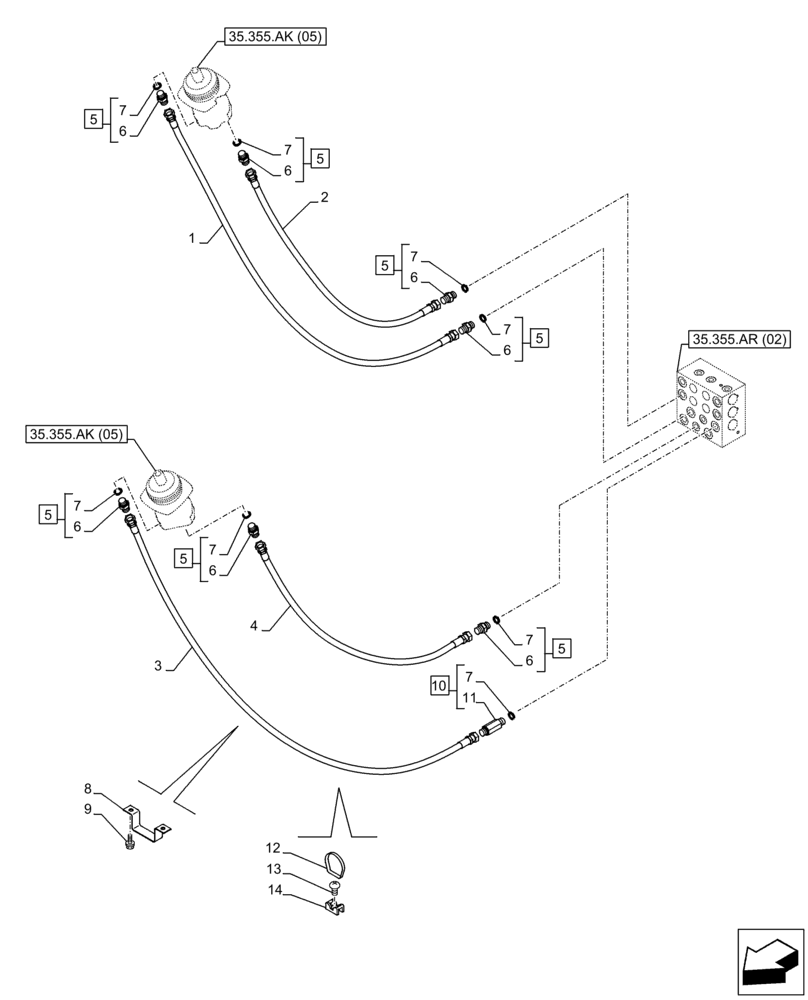

Схема запчастей Case CX350D LC - (35.355.AC[04]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
3
5
7
6
35.355.ak (05)
6
5
1
7
7
4
9
6
2
5
7
35.355.ak (05)
7
6
14
12
10
6
11
7
6
5
8
35.355.ar (02)
7
5
7
5
13
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ22430

HYDRAULIC HOSE

9mm ID x 2050mm

1шт.

2

159212A1

HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm

9mm ID x 2100mm

1шт.

3

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

9mm ID x 1950mm

1шт.

4

KTJ1633

HYDRAULIC HOSE

09mm ID x 1900mm

1шт.

5

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 6, 7 (Qty 1)

7шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

7шт.

7

154475A1

O-RING

5шт.

8

KHJ13770

COLLAR

2шт.

9

166345A1

BOLT

M8 x 16mm

4шт.

10

KAJ2351

FITTING

ASSY, Incl 11, 7 (Qty 1)

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

1шт.

12

150498A1

MOUNTING CLIP

300mm

1шт.

13

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

14

150860A1

COLLAR

1шт.
