(35.355.AC[03]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL PATTERN SELECTION

Запчасти Case CX350D LC (35.355.AC[03]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

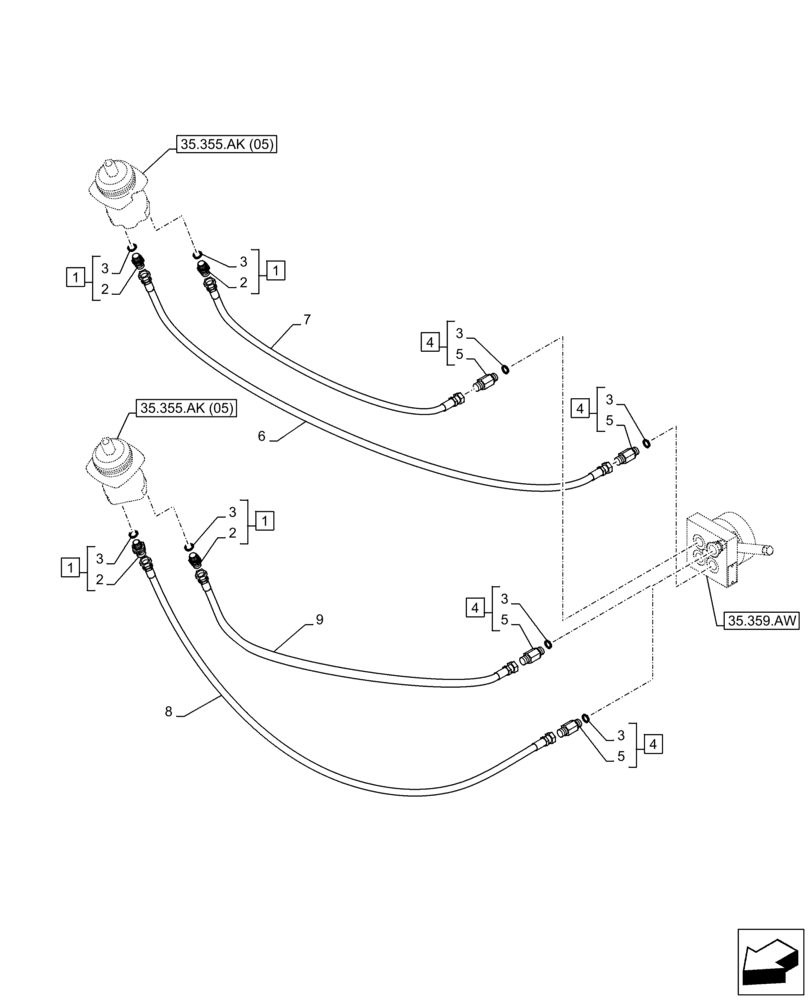

Схема запчастей Case CX350D LC - (35.355.AC[03]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
2
35.355.ak (05)
3
4
3
3
5
4
3
5
35.355.ak (05)
1
7
5
3
35.359.aw
1
2
4
1
6
3
5
3
2
1
4
3
9
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1402

ADAPTER

ASSY, Incl 2, 3 (Qty 1)

4шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

4шт.

3

154475A1

O-RING

8шт.

4

159226A1

ADAPTER

ASSY, Incl 5, 3 (Qty 1)

4шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

4шт.

6

159211A1

HYDRAULIC HOSE

9mm ID x 2000mm

1шт.

7

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

9mm IDX1950

1шт.

8

KRJ4381

HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm

1800mm

1шт.

9

KHJ21490

HYDRAULIC HOSE

9mm ID x 1750mm

1шт.
