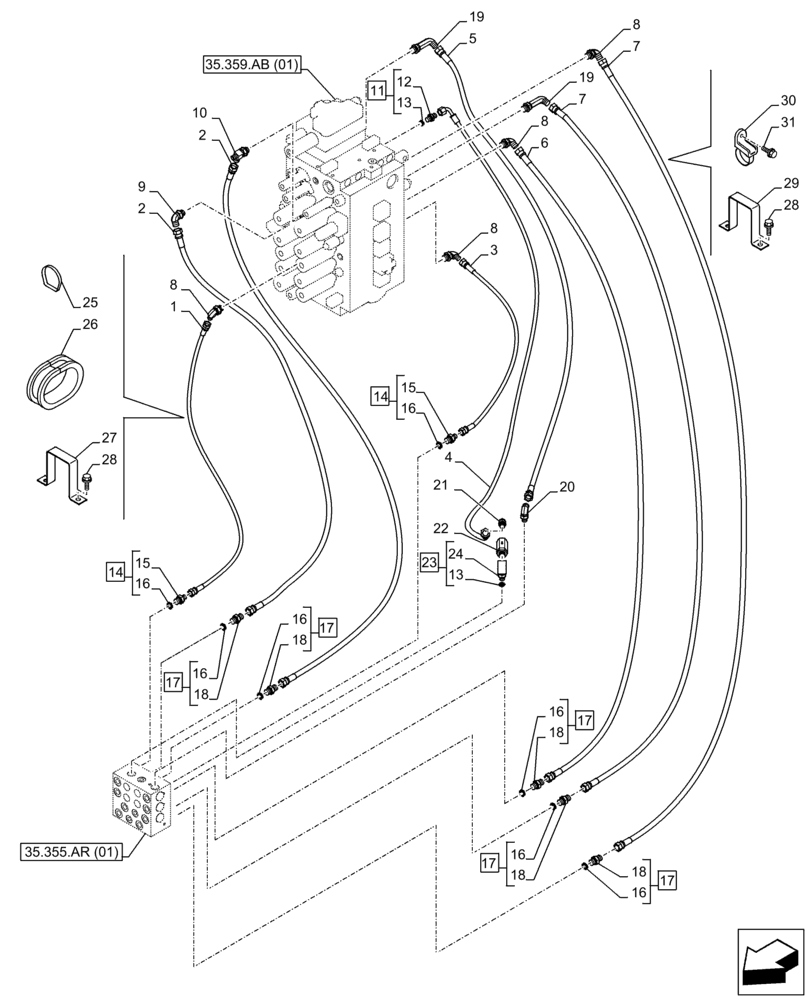

Запчасти Case CX350D LC (35.355.AC[02]) - STD + VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

KHJ2058

HOSE

6mm ID x 1550mm

1шт.

2

KHJ2381

HOSE ASSY.

9mm ID x 1600mm

2шт.

3

KHJ2061

HOSE

6mm ID x 1750mm

1шт.

4

KHJ2097

HOSE

6mm ID x 1750mm

1шт.

5

KHJ13670

HYDRAULIC HOSE,9.52 mm ID x 1950.00 mm

9mm ID x 1950mm

1шт.

6

KHJ24360

HYDRAULIC HOSE

9mm ID x 1800mm

1шт.

7

KHJ23680

HOSE

9mm ID x 2000mm

2шт.

8

KHJ28690

ELBOW

G3/8" x G1/4"

4шт.

9

KHJ28590

ELBOW

G3/8" x G3/8"

1шт.

10

KHJ13900

TEE

1шт.

11

162366A1

ADAPTER

ASSY, Incl 12, 13 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

14

153378A1

ADAPTER

ASSY, Incl 15, 16 (Qty 1)

2шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 14

2шт.

16

154475A1

O-RING

7шт.

17

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 18, 16 (Qty 1)

5шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 17

5шт.

19

KHJ28820

ELBOW

2шт.

20

KHJ28710

ELBOW

1шт.

21

KHJ28630

ELBOW

1шт.

22

KHJ10790

FILTER SCREEN

1шт.

23

KHJ0719

ELBOW

ASSY, Incl 23, 13 (Qty 1)

1шт.

24

NSS

NOT SOLD SEPARAT

Fitting, Incl in 23

1шт.

25

150498A1

MOUNTING CLIP

300mm

2шт.

26

KSR13530

SEAL PROTECTION

1шт.

27

KHJ10250

CLAMP

1шт.

28

166350A1

BOLT

4шт.

29

KHJ2833

CLAMP

1шт.

30

KHR2581

CLAMP

2шт.

31

KHJ1215

BOLT,Spcl

2шт.
