(35.355.AC[01]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE

Запчасти Case CX350D LC (35.355.AC[01]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

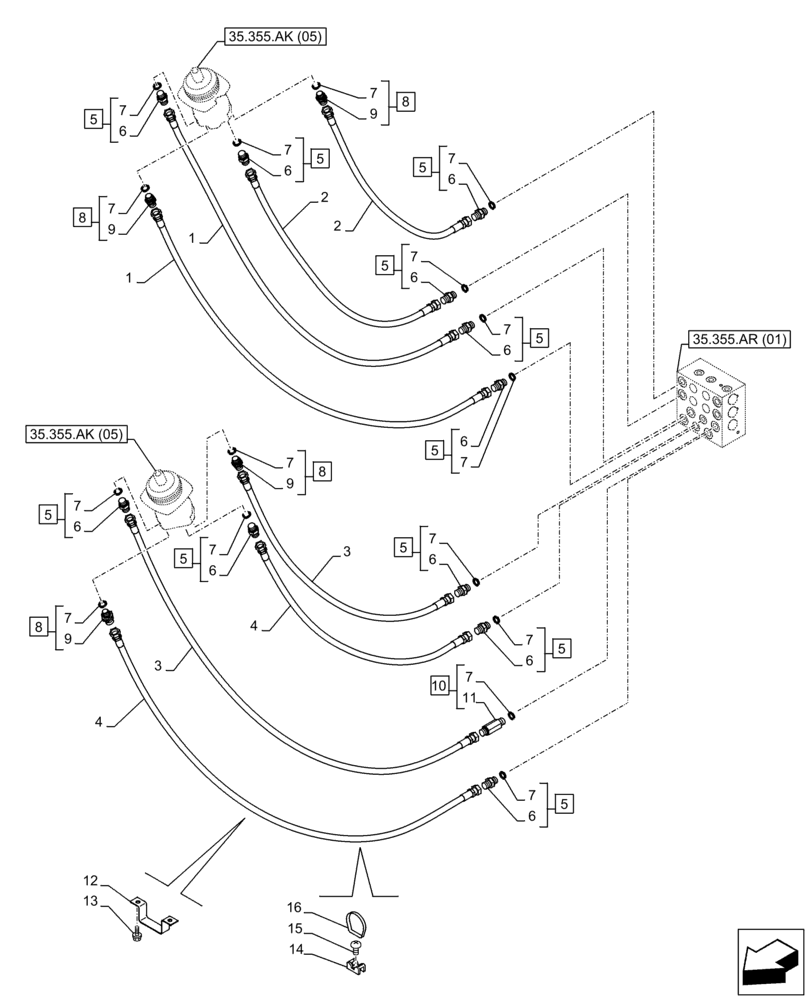

Схема запчастей Case CX350D LC - (35.355.AC[01]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
4
35.355.ak (05)
11
9
9
6
16
5
6
5
1
7
5
7
4
7
8
5
5
8
5
7
7
6
7
7
3
5
7
7
6
7
1
8
6
12
35.355.ak (05)
13
2
7
6
3
35.355.ar (01)
14
9
7
5
6
7
15
8
5
10
7
5
2
6
9
6
6
6
7
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ22430

HYDRAULIC HOSE

9mm ID x 2050mm

2шт.

2

159212A1

HYDRAULIC HOSE,9.50 mm ID x 2100.00 mm

9mm ID x 2100mm

2шт.

3

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

9mm ID x 1950mm

2шт.

4

KTJ1633

HYDRAULIC HOSE

09mm ID x 1900mm

2шт.

5

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 6, 7 (Qty 1)

11шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

11шт.

7

154475A1

O-RING

16шт.

8

KHJ1402

ADAPTER

ASSY, Incl 9, 7 (Qty 1)

4шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

4шт.

10

KAJ2351

FITTING

ASSY, Incl 11, 7 (Qty 1)

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

1шт.

12

KHJ13770

COLLAR

2шт.

13

166345A1

BOLT

M8 x 16mm

4шт.

14

150860A1

COLLAR

1шт.

15

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

16

150498A1

MOUNTING CLIP

300mm

1шт.
