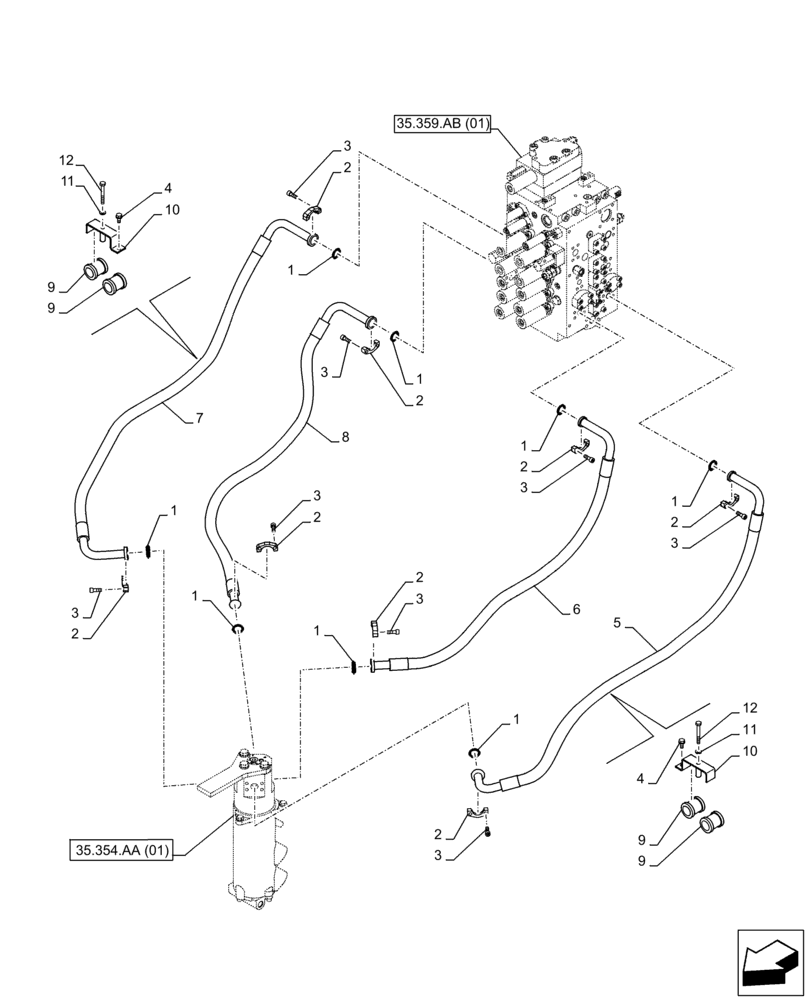

Запчасти Case CX350D LC (35.354.AF) - HYDRAULIC SWIVEL, LINE (35) - HYDRAULIC SYSTEMS

1

155211A1

O-RING

8шт.

2

153459A1

FLANGE

16шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

32шт.

4

166052A1

BOLT

M10 x 25mm

2шт.

5

KSJ18430

HYDRAULIC HOSE

25mm ID x 1720mm

1шт.

6

KSJ18410

HYDRAULIC HOSE

25mm ID x 1440mm

1шт.

7

KSJ18420

HYDRAULIC HOSE

25mm ID x 1760mm

1шт.

8

KSJ18400

HYDRAULIC HOSE

25mm ID x 1500mm

1шт.

9

KHJ2373

HOSE CLAMP

4шт.

10

KSJ18440

BRACKET

2шт.

11

150409A1

WASHER

2шт.

12

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.
