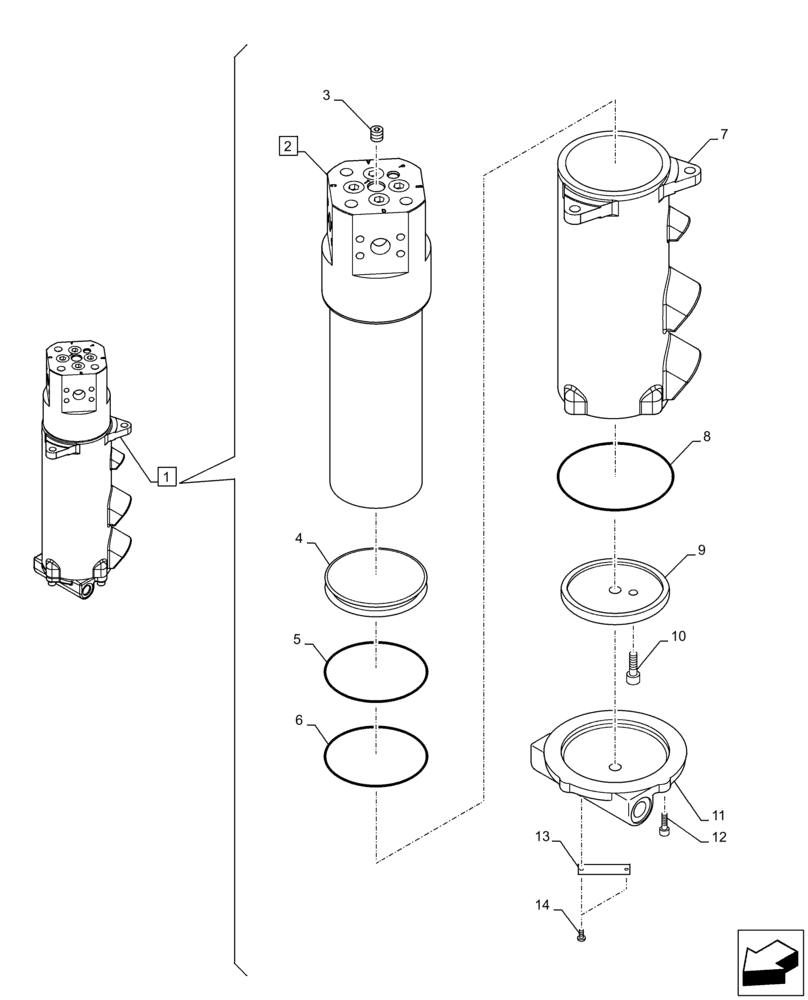

Запчасти Case CX350D LC (35.354.AA[02]) - HYDRAULIC SWIVEL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KSA1305

HYDRAULIC SWIVEL

ASSY, Incl 2 - 14

1шт.

2

KSA1303

SHAFT

ASSY, Incl 3

1шт.

3

150829A1

PLUG

4шт.

4

KTA1092

SHAFT SEAL

1шт.

5

KHA10120

O-RING

1шт.

6

KTA1093

SEALING RING

7шт.

7

KSA1304

ROTOR

1шт.

8

154761A1

O-RING,119.4mm ID x 3.1mm Width

1шт.

9

KTA1096

PLATE

1шт.

10

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

11

KTA1095

COVER

1шт.

12

108R010Y030N

BOLT

M10 x 30mm

4шт.

13

152593A1

TYPE PLATE

1шт.

14

301-1413

DRIVE SCREW,Drive, #2 x 3/16"

2шт.
