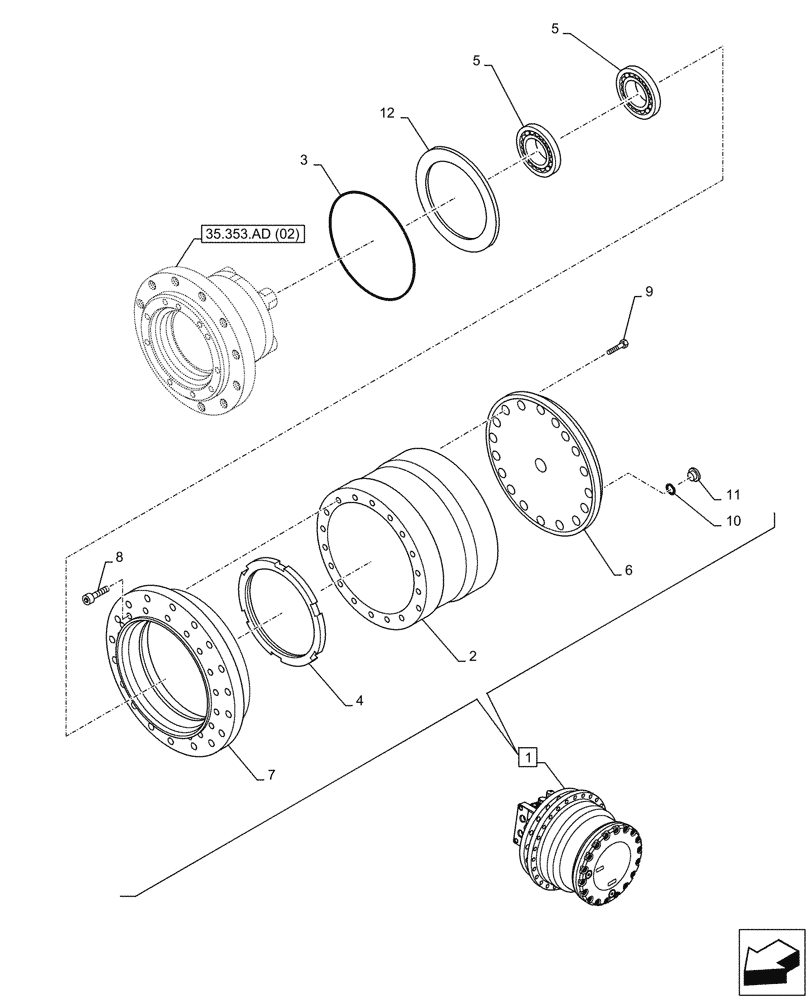

Запчасти Case CX350D LC (35.353.AG[01]) - MOTO-REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KSA14090

HYDRAULIC MOTOR

ASSY, Incl 2 - 12

1шт.

See also Figure 35.353.AD (01), 35.353.AD (02), 35.353.AD (03), 35.353.AG (02), 35.353.AB

1шт.

2

LC003910

RING GEAR

1шт.

3

LE024780

SEAL

1шт.

4

LA016360

LOCK WASHER

2шт.

5

LB017160

BALL BEARING

2шт.

6

LW007300

COVER

1шт.

7

LT002880

HOUSING

1шт.

8

108R018Y110R

BOLT

25шт.

9

626-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

18шт.

10

154503A1

O-RING

2шт.

11

LK00383

PLUG

2шт.

12

LZ013190

KIT

1шт.
