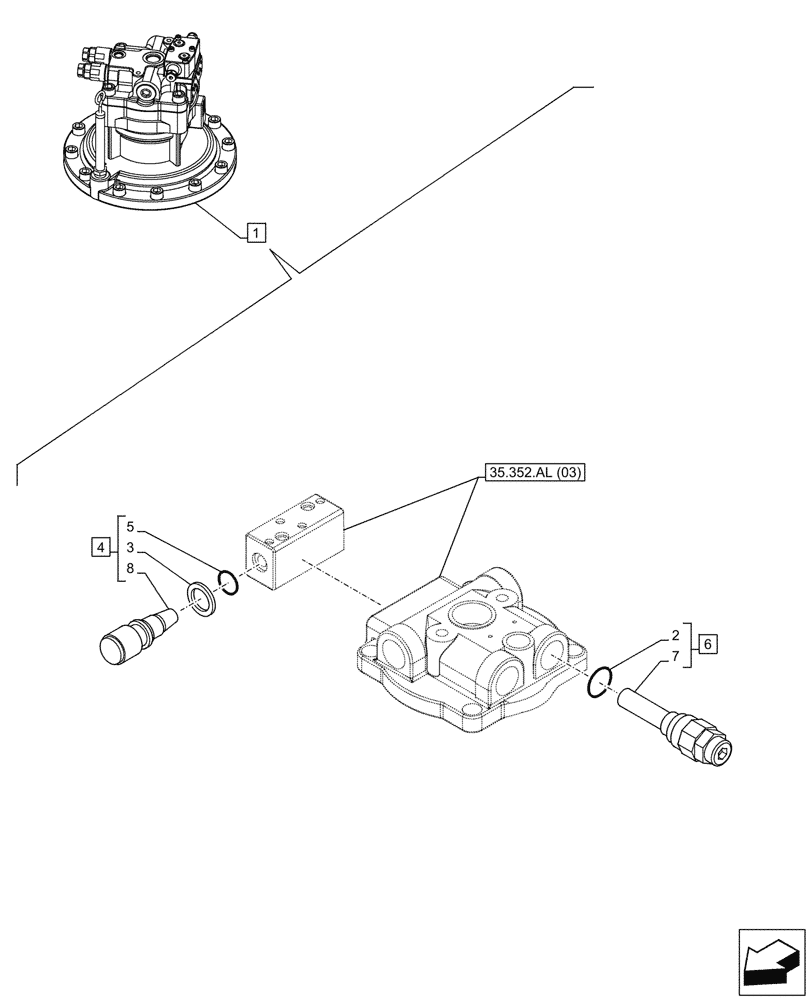

Запчасти Case CX350D LC (35.352.AO) - SWING REDUCTION UNIT, RELIEF VALVE (35) - HYDRAULIC SYSTEMS

1

KSC10070

HYDRAULIC MOTOR

ASSY, Incl 2 - 8

1шт.

See also Figure 35.352.AL (01), 35.352.AL (02), 35.352.AL (03), 35.352.AJ

1шт.

1

KSC10070R

REMAN-HYD MOTOR

1шт.

1

KSC10070C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

LE027940

O-RING

2шт.

3

LE027950

RING

2шт.

Parts is included in Valve Assembly PN LJ00535

1шт.

4

LJ00536

VALVE

ASSY, Incl 3, 5, 8

2шт.

Parts is included in Valve Assembly PN LJ00535

1шт.

5

LE027370

O-RING

2шт.

Parts is included in Valve Assembly PN LJ00535

1шт.

6

LJ015600

VALVE PRESSURE RELIE

ASSY, Incl 2, 7

2шт.

7

NSS

NOT SOLD SEPARAT

Valve, Incl in 6

2шт.

8

NSS

NOT SOLD SEPARAT

Valve, Incl in 4

2шт.

Parts is included in Valve Assembly PN LJ00535

1шт.
