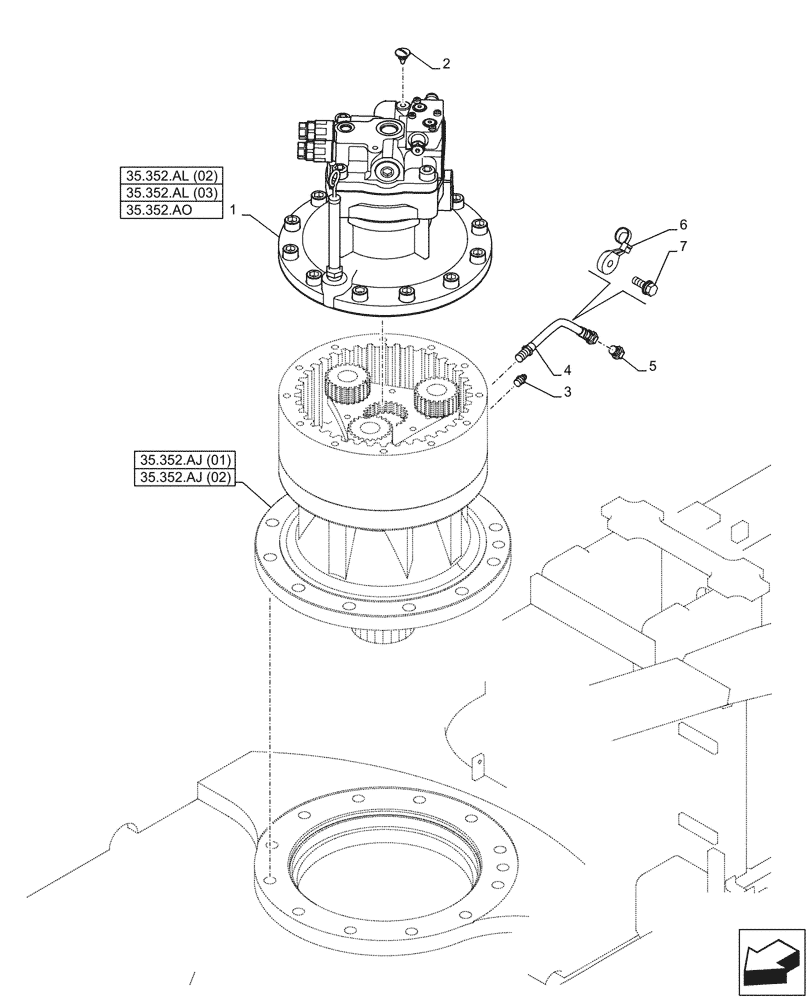

Запчасти Case CX350D LC (35.352.AL[01]) - SWING REDUCTION UNIT (35) - HYDRAULIC SYSTEMS

1

KSC10070

HYDRAULIC MOTOR

ASSY, Motor Swing

1шт.

See also Figure 35.352.AL (02), 35.352.AL (03), 35.352.AO

1шт.

1

KSC10070R

REMAN-HYD MOTOR

ASSY, Motor Swing

1шт.

1

KSC10070C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

KHV12270

SCREW,M12 x 1

, Start Serial: D0365

2шт.

3

153630A1

LUBE NIPPLE

1шт.

4

KTJ0315

HYDRAULIC HOSE,9.52 mm ID x 350.00 mm

9mm ID x 350mm, Serial Range: -C0365

1шт.

4

KNJ14580

HYDRAULIC HOSE,470.00 mm

9mm ID x 350mm, Start Serial: D0365

1шт.

5

KHP0501

PLUG

1шт.

6

KHR2584

CLAMP

1шт.

7

KHJ1215

BOLT,Spcl

1шт.
