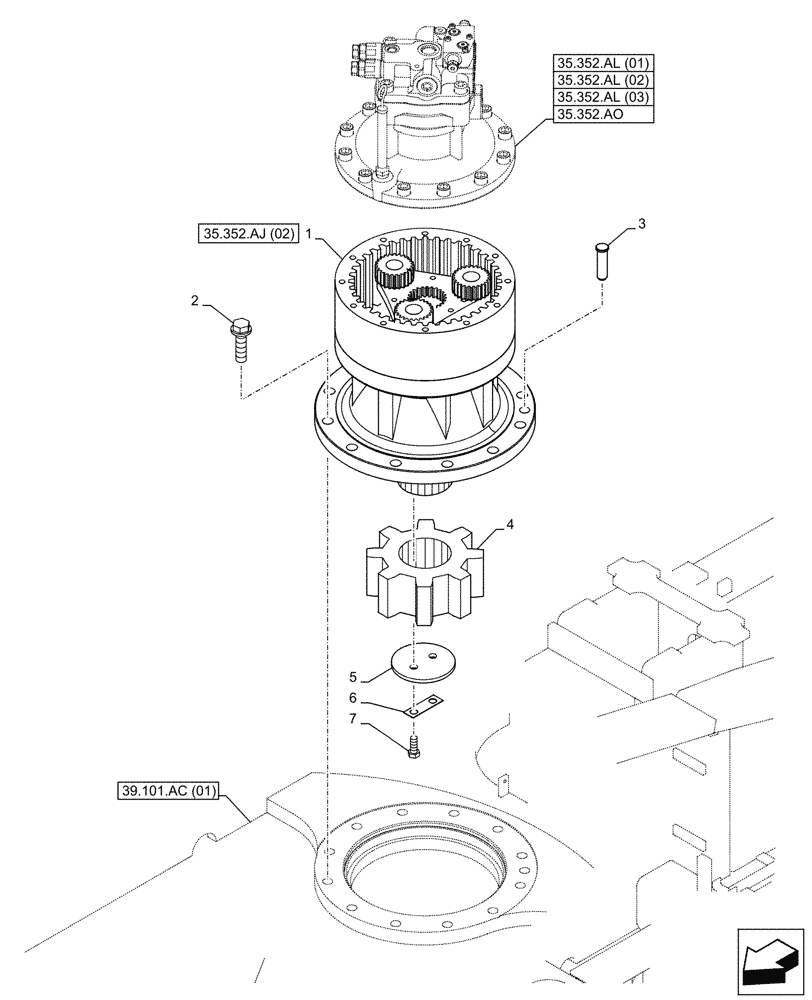

Запчасти Case CX350D LC (35.352.AJ[01]) - MOTO-REDUCTION GEAR (35) - HYDRAULIC SYSTEMS

1

KSC10080

REDUCER

Reduction Gears, Serial Range: -C0365

1шт.

See also Figure 35.352.AJ (02)

1шт.

1

KSC10480

REDUCER

Reduction Gears, Start Serial: D0365

1шт.

See also Figure 35.352.AJ (02)

1шт.

2

166477A1

BOLT,Sems, M24 x 90mm

12шт.

3

150317A1

HEADED PIN,24mm OD x 90mm L

Pin Headed, Serial Range: -C0366

1шт.

3

KRC11710

HEADED PIN

Pin Headed, Start Serial: D0366

1шт.

4

KSC0201

GEAR

1шт.

5

150285A1

PLATE, LOCKING

1шт.

6

167069A1

WASHER

1шт.

7

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.
