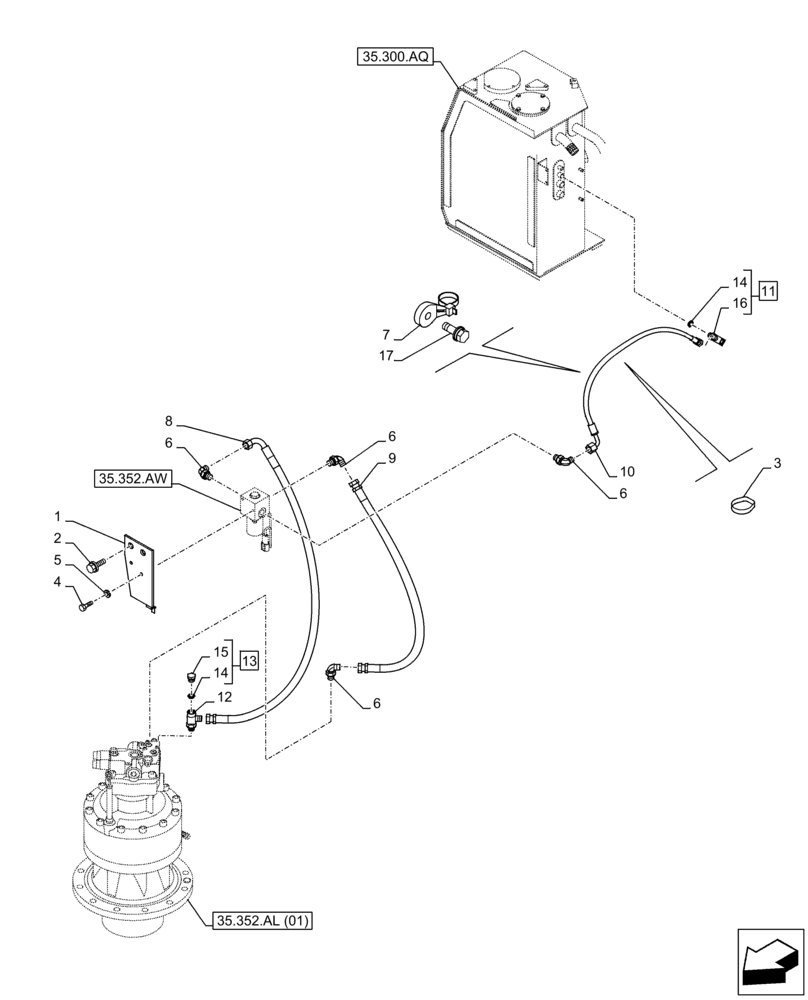

Запчасти Case CX350D LC (35.352.AI[03]) - VAR - 461568 - MOTO-REDUCTION GEAR, LINES, FREE SWING (35) - HYDRAULIC SYSTEMS

1

KTJ12970

BRACKET

1шт.

2

166352A1

BOLT

2шт.

3

150496A1

MOUNTING CLIP

8шт.

4

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

5

183-106VR

SPRING WASHER

2шт.

6

KHJ28580

ELBOW

4шт.

7

KHR2584

CLAMP

3шт.

8

KHJ21640

HYDRAULIC HOSE

1шт.

9

KSJ14690

HYDRAULIC HOSE

1шт.

10

KHJ2090

HOSE

1шт.

11

KHJ2773

TEE

ASSY, Incl 14 (Qty 1), 16

1шт.

12

KHJ11640

ORIFICE

1шт.

13

159002A1

PLUG

ASSY, Incl 14 (Qty 1), 15

1шт.

14

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

15

NSS

NOT SOLD SEPARAT

Plug, Incl in 14

1шт.

16

NSS

NOT SOLD SEPARAT

T - Fitting, Incl in 11

1шт.

17

KHJ1215

BOLT,Spcl

3шт.
