(35.352.AI[02]) - MOTO-REDUCTION GEAR, LINES

Запчасти Case CX350D LC (35.352.AI[02]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

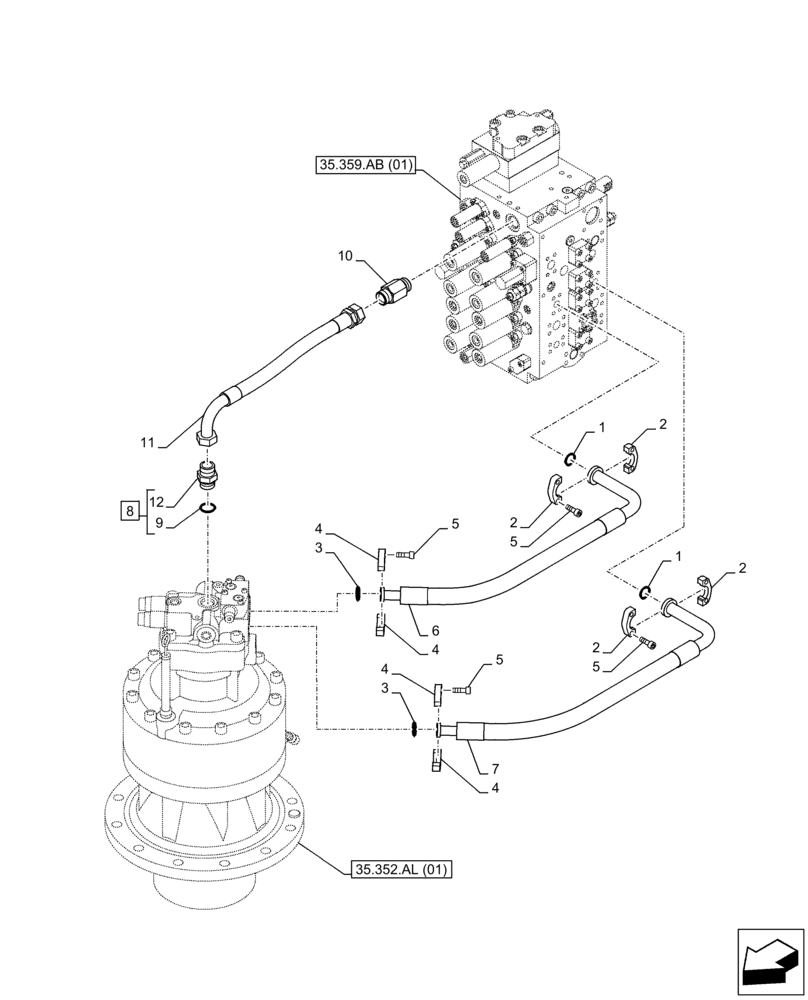

Схема запчастей Case CX350D LC - (35.352.AI[02]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS
2
10
5
3
8
2
12
4
11
5
4
2
7
4
9
1
5
4
6
3
2
35.359.ab (01)
1
35.352.al (01)
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

155211A1

O-RING

2шт.

2

153459A1

FLANGE

4шт.

3

155210A1

O-RING

2шт.

4

153458A1

FLANGE

4шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

16шт.

6

KSJ18480

HYDRAULIC HOSE

25mm ID x 600mm

1шт.

7

KSJ18500

HYDRAULIC HOSE

25mm ID x 800mm

1шт.

8

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ASSY, Incl 9, 12, Start Serial: D0370

1шт.

9

154523A1

O-RING

1шт.

10

KMJ0187

ADAPTER

1шт.

11

KBJ19450

HYDRAULIC HOSE

25mm ID x 550mm, Start Serial: D0370

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.
