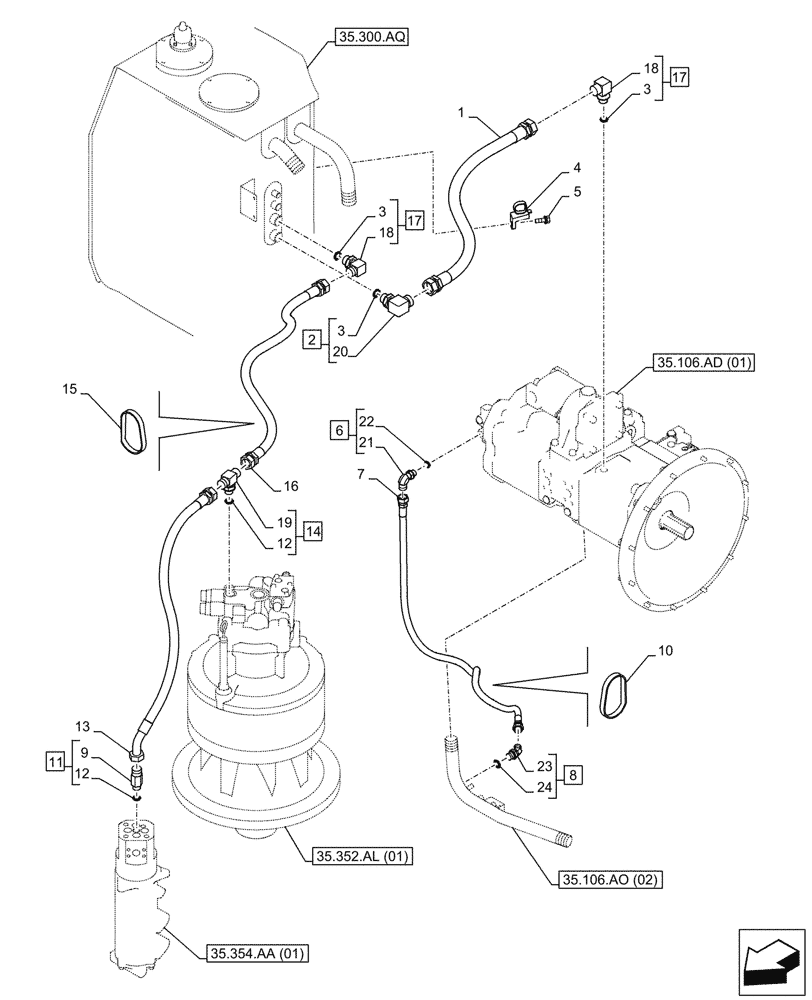

Запчасти Case CX350D LC (35.352.AI[01]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

1

AHV13120

HYDRAULIC HOSE

850mm

1шт.

2

KHJ0603

ELBOW

ASSY, G3/4" x G1", Incl 3 (Qty 1), 20

1шт.

3

154503A1

O-RING

3шт.

4

KHR2581

CLAMP

1шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

6

KHJ28720

ELBOW

ASSY, G3/8" x G1/2", Incl 21 - 22

1шт.

7

KHJ17740

HYDRAULIC HOSE

1500mm, Serial Range: -C0376

1шт.

7

KHJ30270

HYDRAULIC HOSE

1550mm, Start Serial: D0376

1шт.

8

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

, Serial Range: -C0376

1шт.

8

KHJ28650

ELBOW

ASSY, G1/2" x G1/2", Incl 23 - 24, Start Serial: D0376

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

10

150496A1

MOUNTING CLIP

250mm

1шт.

11

KAJ2358

FITTING

ASSY, Incl 12 (Qty 1), 9

1шт.

12

154487A1

O-RING

2шт.

13

KSJ2790

HYDRAULIC HOSE,19.05 mm ID x 880.00 mm

1шт.

14

163114A1

TEE

ASSY, G1/2" x G3/4" x G3/4", Incl 12 (Qty 1), 19

1шт.

15

150071A1

MOUNTING CLIP

380mm

2шт.

16

KEJ0396

HYDRAULIC HOSE,19.00 mm ID x 1000.00 mm

1шт.

17

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, G3/4" x G3/4", Incl 3 (Qty 1), 18

2шт.

18

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 17

2шт.

19

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 14

1шт.

20

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 2

1шт.

21

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

22

150031A1

O-RING,10mm ID x 24mm OD

1шт.

23

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

24

150539A1

O-RING

1шт.
