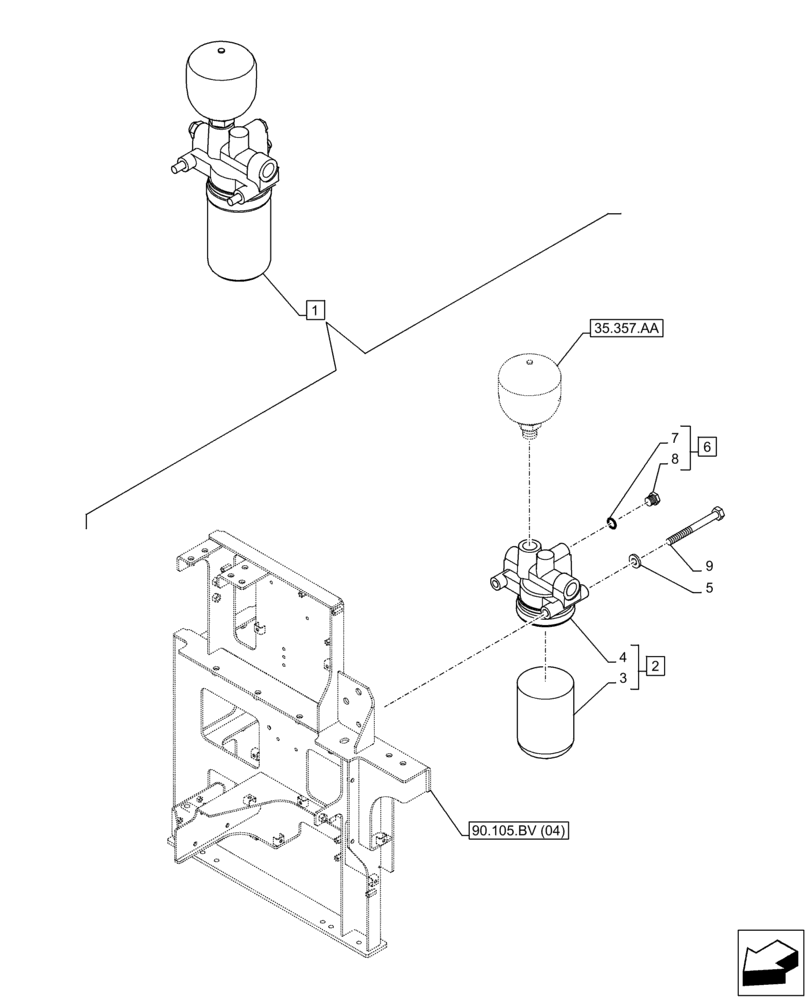

Запчасти Case CX350D LC (35.300.AN[02]) - HYDRAULIC SYSTEM, OIL FILTER (35) - HYDRAULIC SYSTEMS

1

KHJ17711

ACCUMULATOR

ASSY, Incl 2 - 4, Serial Range: -C0381

1шт.

See also Figure 35.357.AA

1шт.

1

KHJ17710

FILTER ASSY

, Start Serial: D0381

1шт.

See also Figure 35.357.AA

1шт.

2

KHJ17720

FILTER HEAD

ASSY, Incl 3 - 4

1шт.

3

KHJ17730

HYDRAULIC OIL FILTER

Pilot Filter Element

1шт.

4

NSS

NOT SOLD SEPARAT

Manifold Filter, Incl in 2

1шт.

5

150409A1

WASHER

2шт.

6

159002A1

PLUG

ASSY, Incl 7 - 8

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

1шт.

9

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.
