(35.106.AO[03]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX350D LC (35.106.AO[03]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

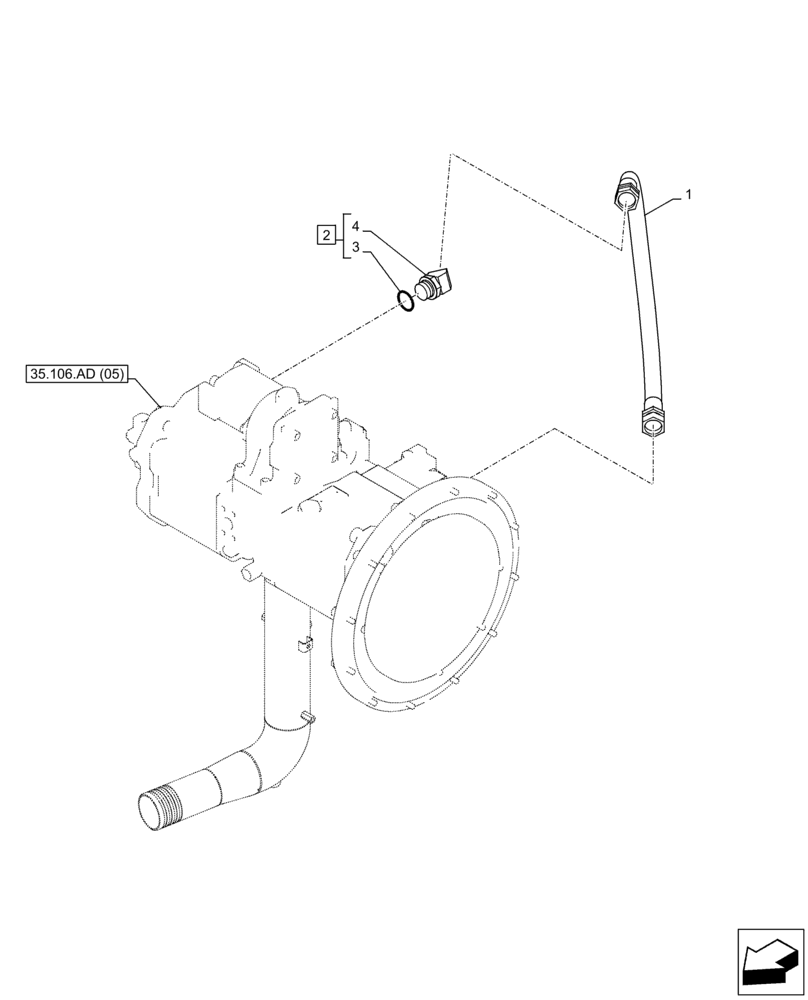

Схема запчастей Case CX350D LC - (35.106.AO[03]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
1
1
35.106.ad (05)
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSJ2909

HYDRAULIC HOSE,25.40 mm ID x 780.00 mm

1шт.

2

157587A1

ELBOW

ASSY, Incl 3 - 4

1шт.

3

154523A1

O-RING

1шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

Выбрано товаров: 4
