(35.106.AO[03]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, LINE, CLAMSHELL BUCKET, ROTATION, W/ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX300D LC (35.106.AO[03]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, LINE, CLAMSHELL BUCKET, ROTATION, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

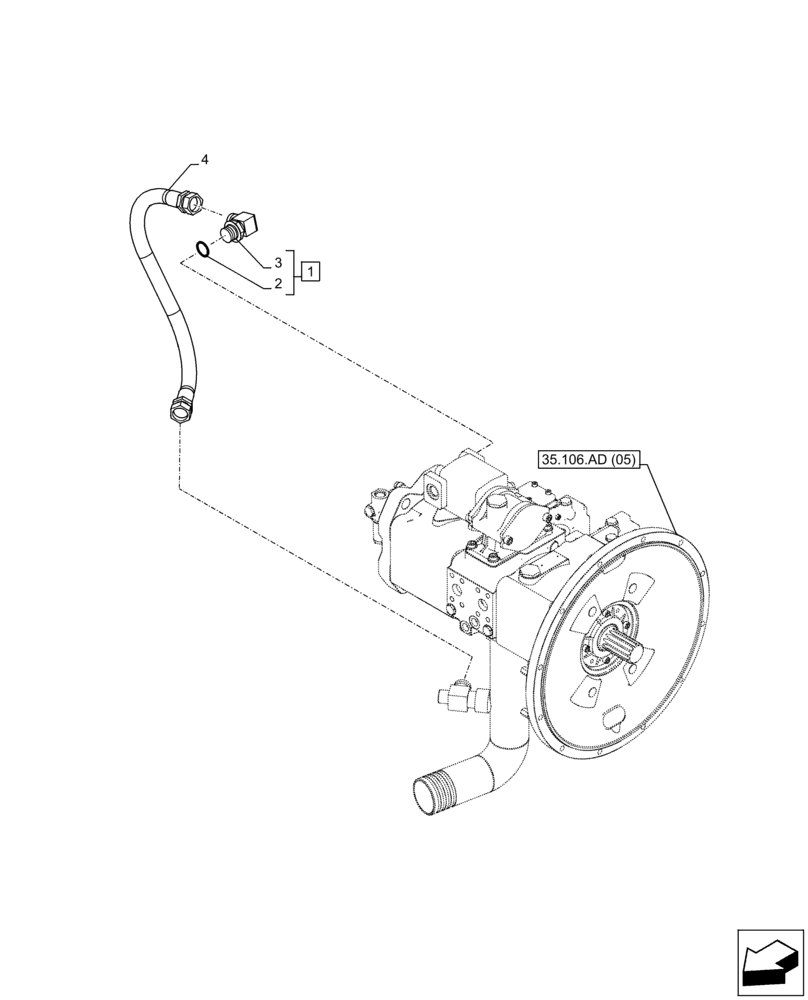

Схема запчастей Case CX300D LC - (35.106.AO[03]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, LINE, CLAMSHELL BUCKET, ROTATION, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.106.ad (05)
3
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY, Incl 2, 3

1шт.

2

154523A1

O-RING

1шт.

3

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 1

1шт.

4

KSJ2909

HYDRAULIC HOSE,25.40 mm ID x 780.00 mm

1шт.
