(35.106.AO[02]) - VARIABLE DELIVERY HYDRAULIC PUMP, LINES

Запчасти Case CX300D LC (35.106.AO[02]) - VARIABLE DELIVERY HYDRAULIC PUMP, LINES (35) - HYDRAULIC SYSTEMS

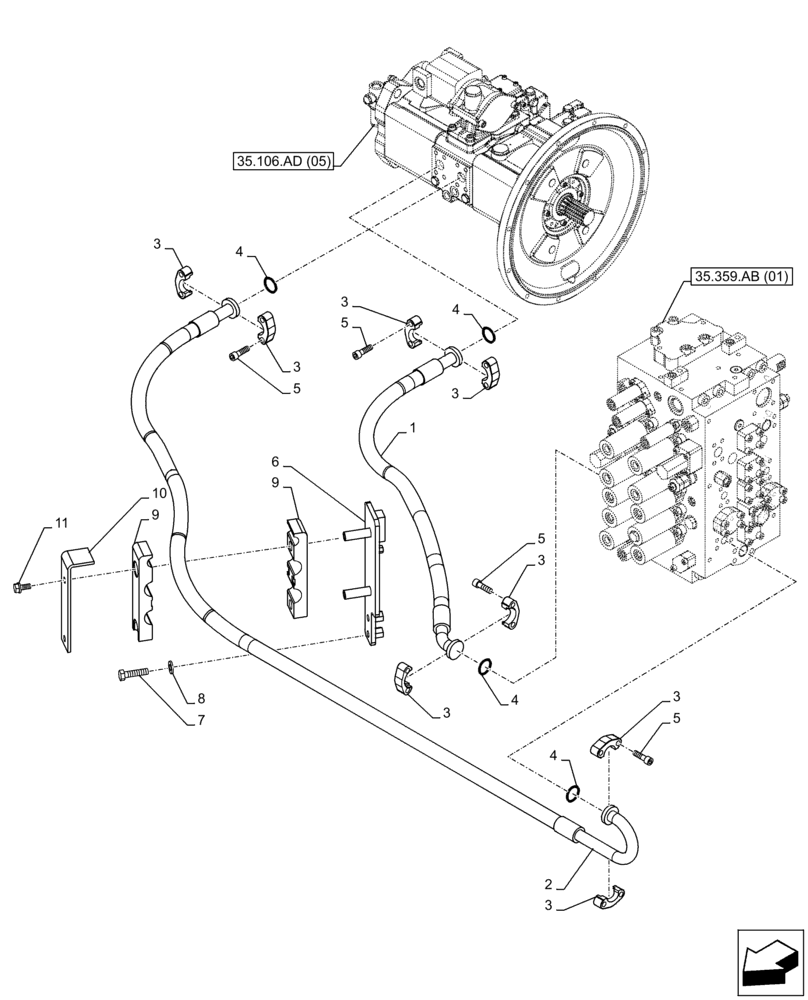

Схема запчастей Case CX300D LC - (35.106.AO[02]) - VARIABLE DELIVERY HYDRAULIC PUMP, LINES (35) - HYDRAULIC SYSTEMS
3
5
3
5
3
4
5
11
4
3
3
4
10
2
7
8
3
35.359.ab (01)
35.106.ad (05)
1
4
6
3
9
5
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ19840

HYDRAULIC HOSE

22mm ID x 1200mm

1шт.

2

KBJ20020

HYDRAULIC HOSE

22mm ID x 1460mm

1шт.

3

150561A1

FLANGE

8шт.

4

155211A1

O-RING

4шт.

5

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

M12 x 40mm

16шт.

6

KBJ22950

BRACKET

1шт.

7

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

M12 x 50mm

2шт.

8

150811A1

WASHER

2шт.

9

KRJ10790

HOSE CLIP

2шт.

10

KRJ10810

PLATE

1шт.

11

166052A1

BOLT

M10 x 25mm

2шт.
