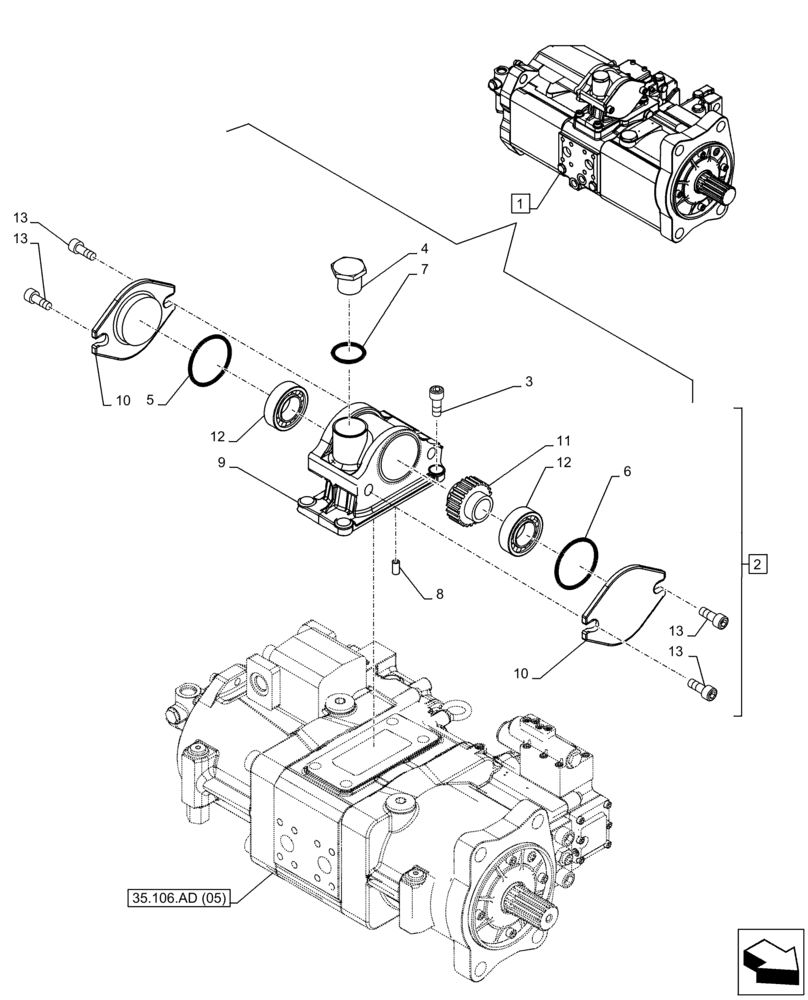

Запчасти Case CX300D LC (35.106.AN) - VAR - 461863 - HYDRAULIC PUMP, PTO, CLAMSHELL BUCKET, ROTATION, W/ELECTRICAL, PROPORTIONAL, CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KBJ19181

HYDRAULIC PUMP

ASSY, Incl 2 -13

1шт.

See also Figure 35.106.AD (05), 35.106.AD (06), 35.106.AD (07), 35.106.AD (08), 35.106.AL (02), 35.357.AC (02), 35.106.AN

1шт.

2

LC002860

PUMP

1шт.

3

LA00691

BOLT,Hex Skt Hd

4шт.

4

155471A1

PLUG

1шт.

5

154689A1

O-RING

1шт.

6

154697A1

O-RING

1шт.

7

154503A1

O-RING

1шт.

8

LA010900

DOWEL

1шт.

9

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

11

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Bearing, Incl in 1

2шт.

13

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

4шт.
