(35.106.AL[02]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, PROPORTIONAL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS

Запчасти Case CX300D LC (35.106.AL[02]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, PROPORTIONAL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

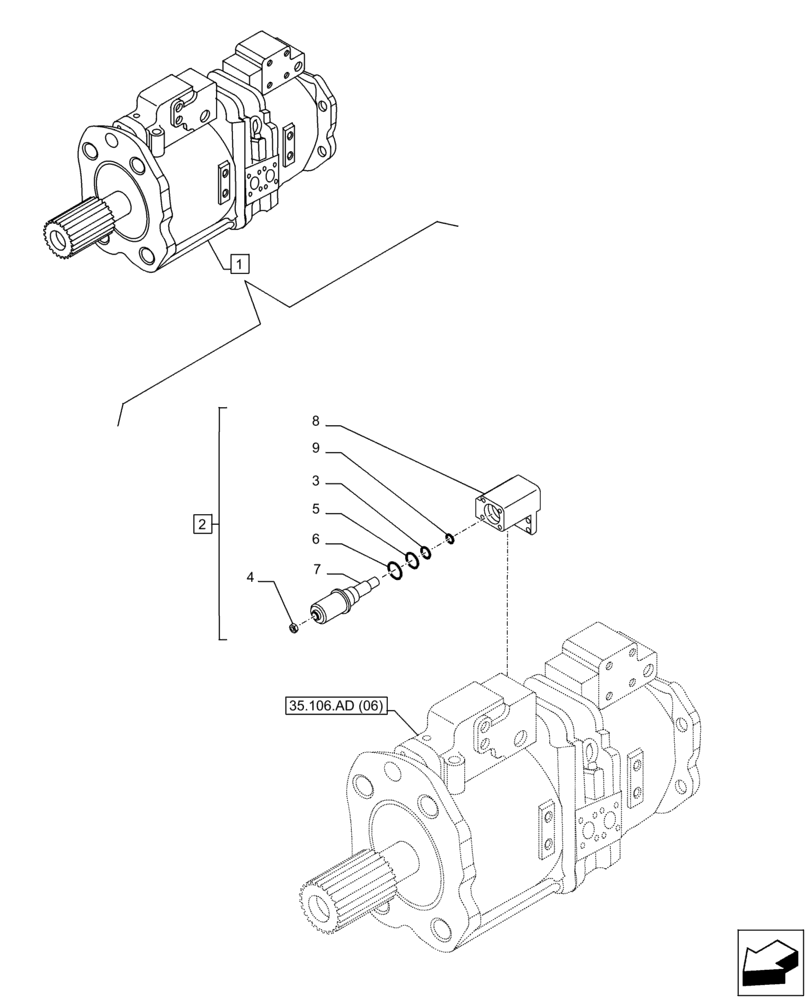

Схема запчастей Case CX300D LC - (35.106.AL[02]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, PROPORTIONAL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
9
1
3
8
6
5
7
2
4
35.106.ad (06)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ19181

HYDRAULIC PUMP

ASSY, Incl 2 - 9

1шт.

See also Figure 35.106.AD (05), 35.106.AD (06), 35.106.AD (07), 35.106.AD (08), 35.357.AC (02), 35.106.AN

1шт.

2

LJ022310

VALVE

ASSY, Incl 3 - 9

2шт.

3

155204A1

O-RING

2шт.

4

LA010930

SPECIAL NUT

2шт.

5

160652A1

O-RING

2шт.

6

154491A1

O-RING

2шт.

7

NSS

NOT SOLD SEPARAT

Valve, Reducing, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

9

155203A1

O-RING

2шт.
