(35.106.AL[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, PROPORTIONAL VALVE

Запчасти Case CX300D LC (35.106.AL[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, PROPORTIONAL VALVE (35) - HYDRAULIC SYSTEMS

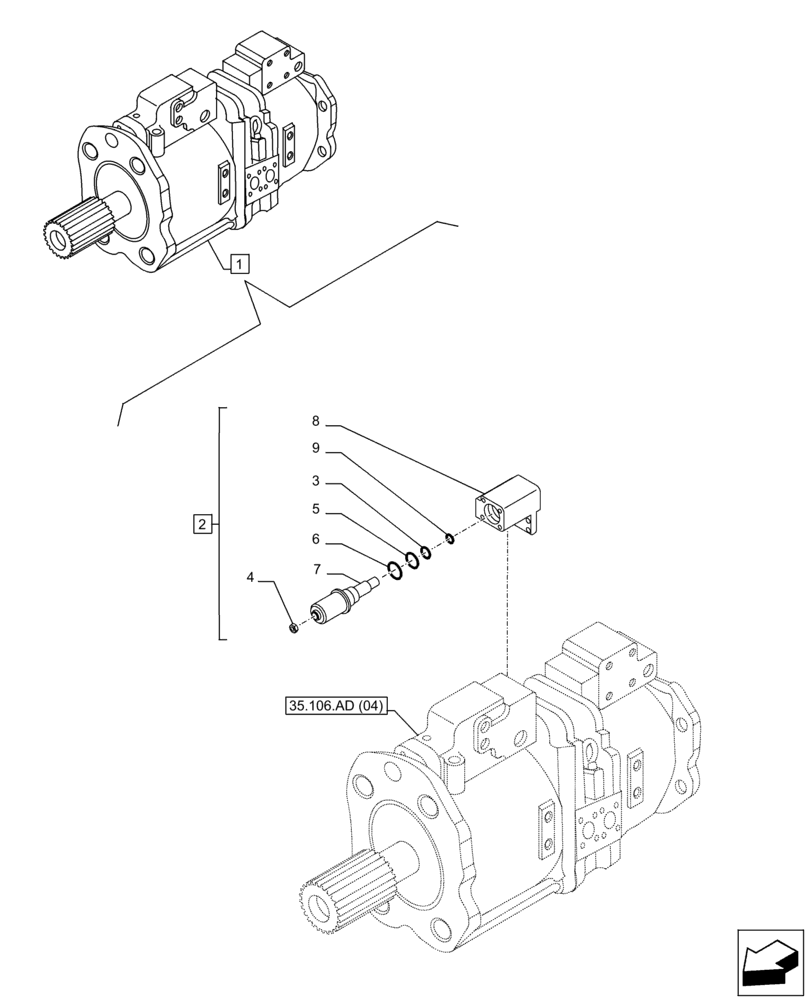

Схема запчастей Case CX300D LC - (35.106.AL[01]) - VARIABLE DELIVERY HYDRAULIC PUMP, PROPORTIONAL VALVE (35) - HYDRAULIC SYSTEMS
5
35.106.ad (04)
8
7
9
6
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ19161

HYDRAULIC PUMP

ASSY, Incl 2 - 9

1шт.

See also Figure 35.106.AD (01), 35.106.AD (02), 35.106.AD (03), 35.106.AD (04), 35.357.AC (01)

1шт.

2

LJ022310

VALVE

ASSY, Incl 3 - 9

2шт.

3

155204A1

O-RING

2шт.

4

LA010930

SPECIAL NUT

2шт.

5

160652A1

O-RING

2шт.

6

154491A1

O-RING

2шт.

7

NSS

NOT SOLD SEPARAT

Valve, Reducing, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

9

155203A1

O-RING

2шт.
