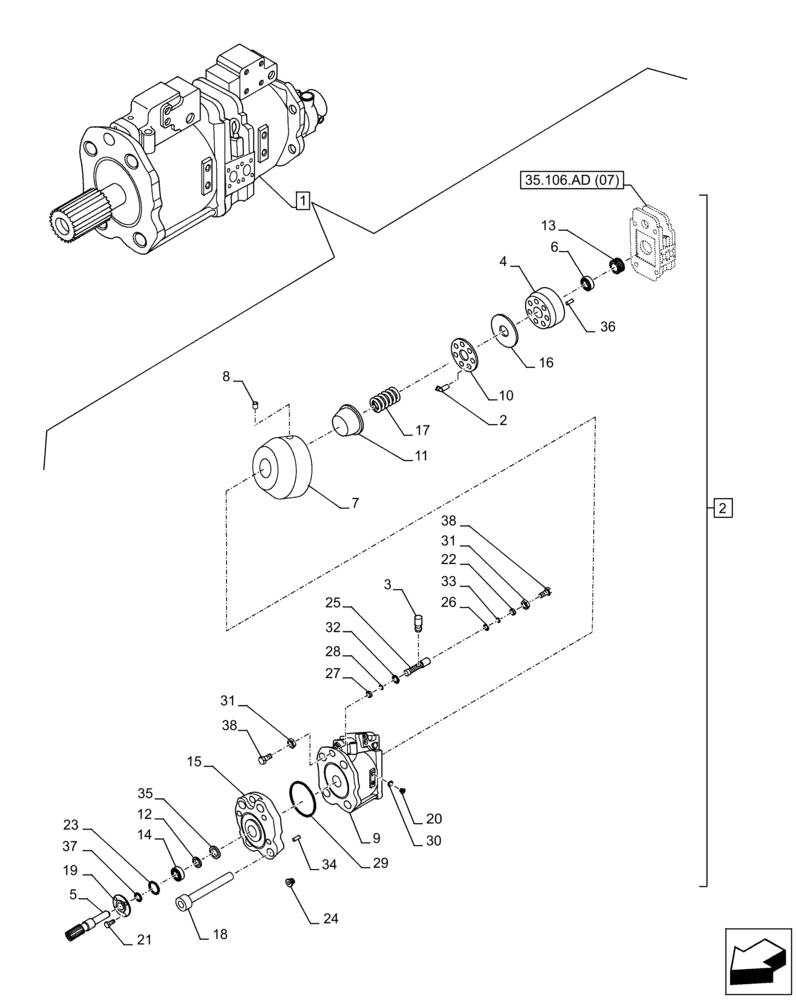

Запчасти Case CX300D LC (35.106.AD[08]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ELECTRICAL PROPORTIONAL, CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KBJ19181

HYDRAULIC PUMP

ASSY, Incl 2 - 38

1шт.

See also Figure 35.106.AD (05), 35.106.AD (06), 35.106.AD (07), 35.106.AL (02), 35.357.AC (02), 35.106.AN

1шт.

2

LJ022550

HYDRAULIC PUMP

ASSY, Incl 3 - 38

1шт.

3

LA016600

PIN

2шт.

4

LJ018660

HYD PUMP REPAIR KIT

1шт.

5

LB00925

DRIVE SHAFT

1шт.

6

TB00025

NEEDLE BEARING,33 mm ID x 47 mm OD x 32 mm

2шт.

7

LR012710

VALVE POPPET

2шт.

8

TIP0001033

DOWEL

1шт.

9

LJ018650

HYD PUMP REPAIR KIT

1шт.

10

160113A1

PLATE

2шт.

11

169288A1

BUSHING

2шт.

12

156963A1

SPACER

3шт.

13

TC00021

GEAR

1шт.

14

TB00026

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

2шт.

15

LS002640

SPOOL

2шт.

16

TR00047

PLATE

2шт.

17

TG00025

SPRING

18шт.

18

167078A1

BOLT,M8 x 40mm, Cl 12.9

8шт.

19

TW00032

COVER

1шт.

20

155471A1

PLUG

4шт.

21

LA016880

4шт.

22

160115A1

STOP

2шт.

23

154553A1

O-RING

1шт.

24

LK00003

PLUG

32шт.

25

TJ00066

PISTON

2шт.

26

LE013510

O-RING

1шт.

27

160116A1

STOP

2шт.

28

153970A1

BACK-UP RING

2шт.

29

LE013500

O-RING

4шт.

30

LE013440

O-RING

4шт.

31

LA016770

NUT

2шт.

32

154489A1

O-RING

2шт.

33

154017A1

BACK-UP RING

2шт.

34

LA017130

PIN

4шт.

35

LA016920

2шт.

36

156954A1

DOWEL

2шт.

37

LE018630

OIL SEAL

1шт.

38

LA00036

SET SCREW,Hex

2шт.
