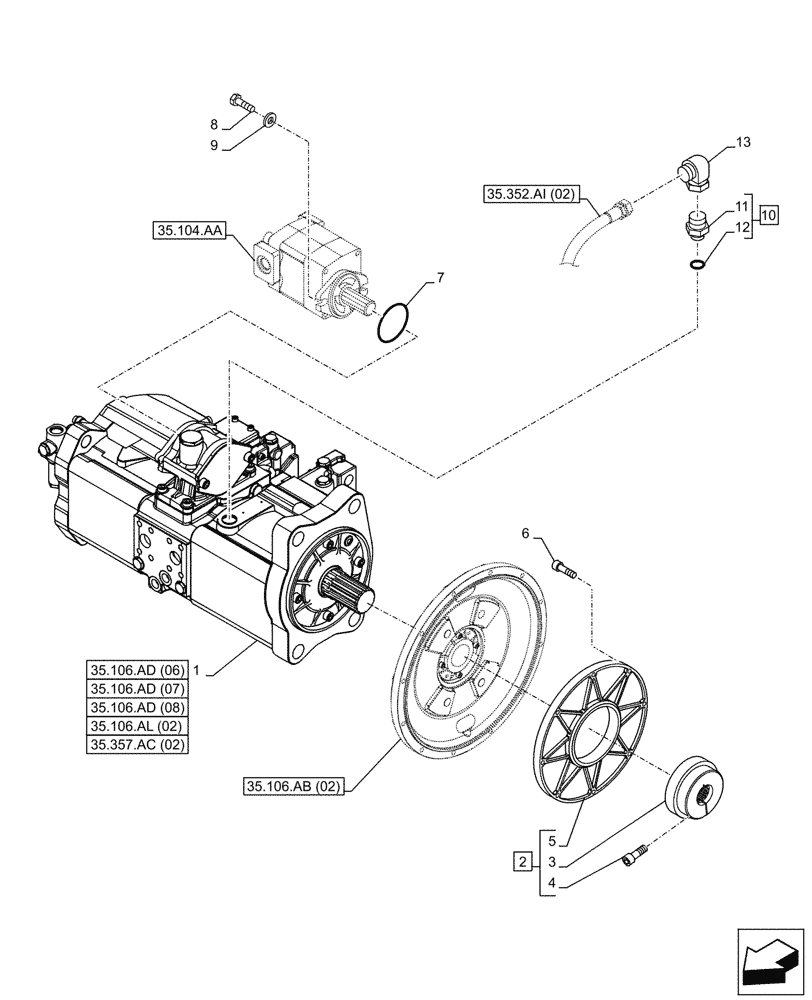

Запчасти Case CX300D LC (35.106.AD[05]) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ELECTRICAL PROPORTIONAL, CONTROL (35) - HYDRAULIC SYSTEMS

1

KBJ19181

HYDRAULIC PUMP

ASSY

1шт.

See also Figure 35.106.AD (06), 35.106.AD (07), 35.106.AD (08), 35.106.AL (02), 35.357.AC (02)

1шт.

2

KSJ2874

COUPLING FLANGE

ASSY, Incl 3 - 5

1шт.

3

KSJ2875

HUB

1шт.

4

KSJ2665

BOLT,Spcl

1шт.

5

KSJ2666

COVER

1шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

7

154697A1

O-RING

1шт.

8

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

9

150409A1

WASHER

2шт.

10

153001A1

ADAPTER

ASSY, Incl 11, 12, Start Serial: D0247

1шт.

11

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 10, Start Serial: D0247

1шт.

12

150542A1

O-RING

, Start Serial: D0247

1шт.

13

BHA1110

GASKET

, Start Serial: D0247

1шт.
