(35.106.AD[01]) - VARIABLE DELIVERY HYDRAULIC PUMP

Запчасти Case CX300D LC (35.106.AD[01]) - VARIABLE DELIVERY HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

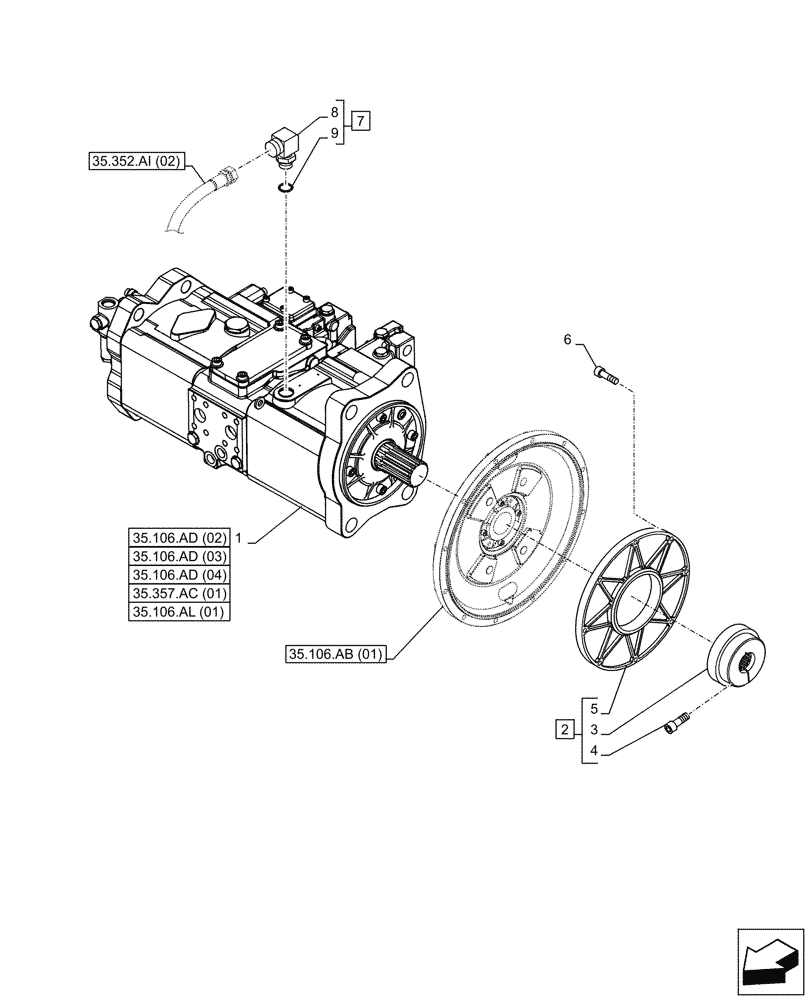

Схема запчастей Case CX300D LC - (35.106.AD[01]) - VARIABLE DELIVERY HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS
35.352.ai (02)
3
9
5
4
7
8
2
6
1
35.106.ab (01)
35.106.ad (04)
35.357.ac (01)
35.106.ad (03)
35.106.ad (02)
35.106.al (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ19161

HYDRAULIC PUMP

ASSY

1шт.

See also Figure 35.106.AD (02), 35.106.AD (03), 35.106.AD (04), 35.357.AC (01), 35.106.AL (01)

1шт.

2

KSJ2874

COUPLING FLANGE

ASSY, Incl 3 - 5

1шт.

3

KSJ2875

HUB

1шт.

4

KSJ2665

BOLT,Spcl

M16 x 45mm

1шт.

5

KSJ2666

COVER

1шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

7

KHJ0603

ELBOW

ASSY, Incl 8, 9, Start Serial: D0246

1шт.

8

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 7, Start Serial: D0246

1шт.

9

150542A1

O-RING

, Start Serial: D0246

1шт.
