Запчасти Case CX300D LC (35.104.AA) - VAR - 461863 - HYDRAULIC PUMP, GEAR, CLAMSHEELL, BUCKET, ROTATION, W/ELECTRICAL, PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

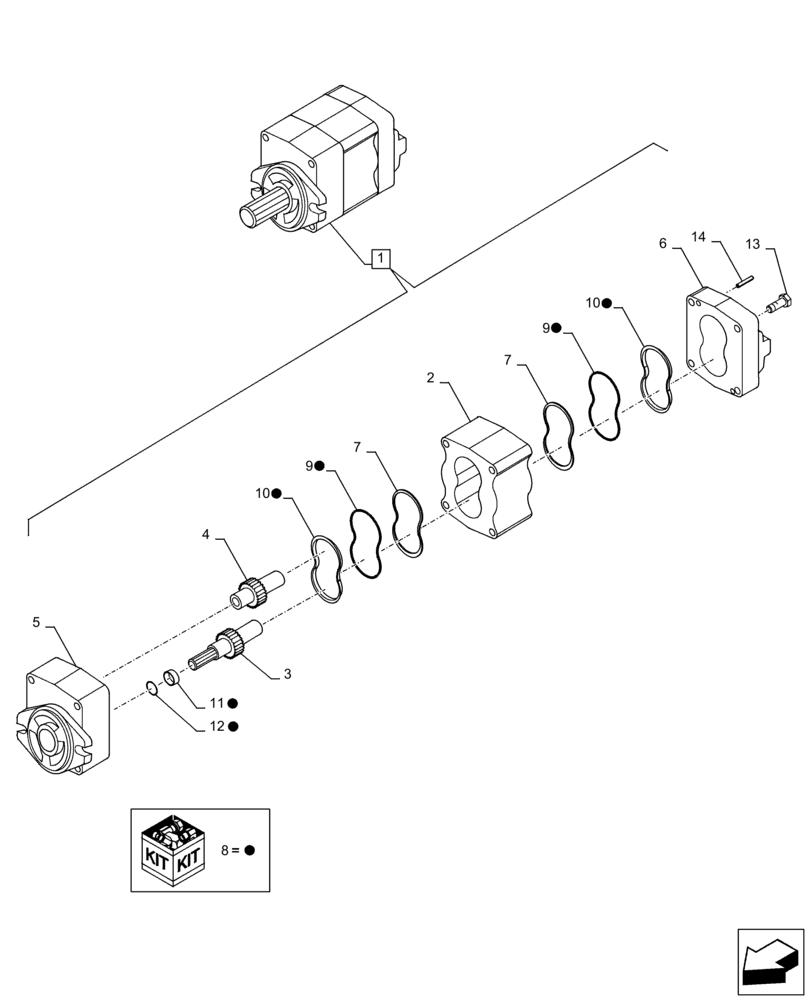

Схема запчастей Case CX300D LC - (35.104.AA) - VAR - 461863 - HYDRAULIC PUMP, GEAR, CLAMSHEELL, BUCKET, ROTATION, W/ELECTRICAL, PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
8
10
13
4
8
14
7
5
9
8
8
9
12
2
10
8
7
11
8
1
3
6
8
8

Артикул

Название

Примечание

Количество

1

KRJ10300

HYDRAULIC PUMP

ASSY, Incl. 2 - 14

1шт.

1

KRJ10300R

REMAN-HYD PUMP

1шт.

1

KRJ10300C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

LC002970

GEAR

1шт.

3

NSS

NOT SOLD SEPARAT

Gear, SPL, Incl In 1

1шт.

4

NSS

NOT SOLD SEPARAT

Gear, SPL, Incl in 1

1шт.

5

LH004940

FLANGE

1шт.

6

LW005070

COVER

1шт.

7

LR015150

PLATE

2шт.

8

LZ008000

REPAIR KIT

1шт.

9

LAP0032

SEAL

2шт.

10

LBP0073

BACK-UP RING

2шт.

11

LAP0033

OIL SEAL

1шт.

12

LMP0257

RING

1шт.

13

LA011070

BOLT,Hex Skt Hd

4шт.

14

LA011060

SPECIAL PIN

4шт.

Выбрано товаров: 16
