(90.160.BL[01]) - CAB, PANEL, RIGHT, SIDE

Запчасти Case CX300D LC (90.160.BL[01]) - CAB, PANEL, RIGHT, SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

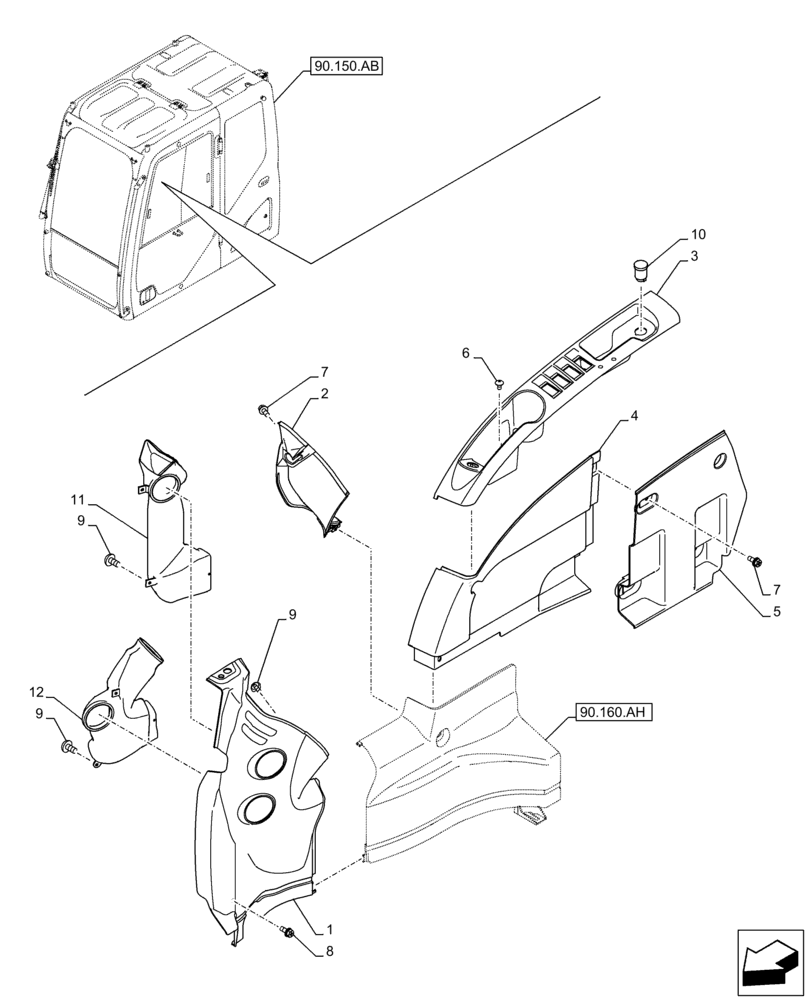

Схема запчастей Case CX300D LC - (90.160.BL[01]) - CAB, PANEL, RIGHT, SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
3
4
90.150.ab
9
10
7
5
2
12
7
9
6
9
11
90.160.ah
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN27080

TRIM

1шт.

2

KHN27090

TRIM

1шт.

3

KHN27101

TRIM

1шт.

4

KHN27110

TRIM

1шт.

5

KHN27121

TRIM

1шт.

6

KHN2682

SCREW,Spcl

M6 x 1 x 12mm

4шт.

7

KHN14710

BOLT,Spcl

M6 x 1 x 14mm

10шт.

8

KHN18110

BOLT,Spcl, Hex, M6 x 20mm

M6 x 20mm

1шт.

9

KHN27470

SCREW

M5 x 14mm

8шт.

10

KHR2501

SOCKET

1шт.

11

KHR27040

DUCT

1шт.

12

KHR27030

DUCT

1шт.

Выбрано товаров: 12
